Velosolex Solex Parts for Sale

To order parts:

~ e-mail me at velosolex4600@protonmail.com or use the Contact Form above ^

~ let me know which parts you'd like to purchase, and your city & zip code

~ I'll let you know the total with shipping

~ you can then pay by check or money order or Zelle ...

~ your parts will be shipped, and a tracking number will be provided

~ shipping only to USA

~ all parts are shipped from New York by USPS or UPS

All prices are in $ USD

Note: I answer all e-mails and Contact Forms.

If you contacted me and didn't receive a response,

check your SPAM filter / folder ( especially if you use gmail ).

Brian Solex / Velosolex-America

-------------------------------------------------------------------------------------------------

Velosolex Solex Parts For Sale

Engine

Price $ USD

V

air filter hood, black 18

~ fits 2200, 3300, 3800, 4600, 5000, Micron

air filter hood, chrome 20

~ fits 2200, 3300, 3800, 4600, 5000, Micron

air filter assembly screw & washer 5

~ fits 2200, 3300, 3800, 4600, 5000, Micron

~ 9 mm ATF

air filter assembly knurled nut 5

~ fits 1010, 1400, 1700

air filter assembly support arch 4

~ fits 3300, 3800, 4600, 5000, Micron

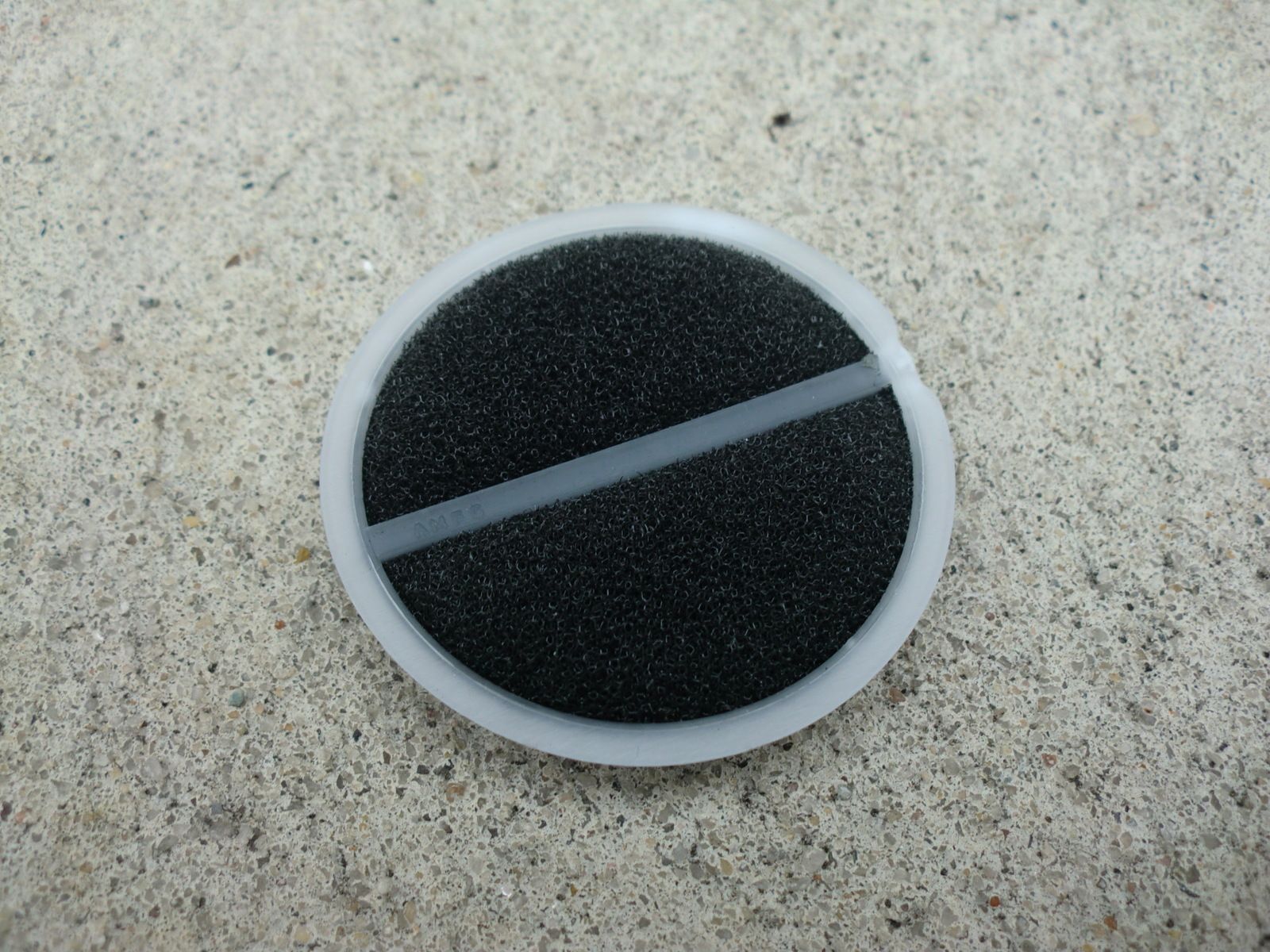

air filter element, foam 8

~ fits 1700, 2200, 3300, 3800, 4600, 5000, Micron

air filter ring 4

~ fits 1700, 2200, 3300, 3800, 4600, 5000, Micron

air filter base 42

~ fits 2200, 3300, 3800, 4600, 5000, Micron

air filter base seal 2

~ fits 2200, 3300, 3800, 4600, 5000, Micron

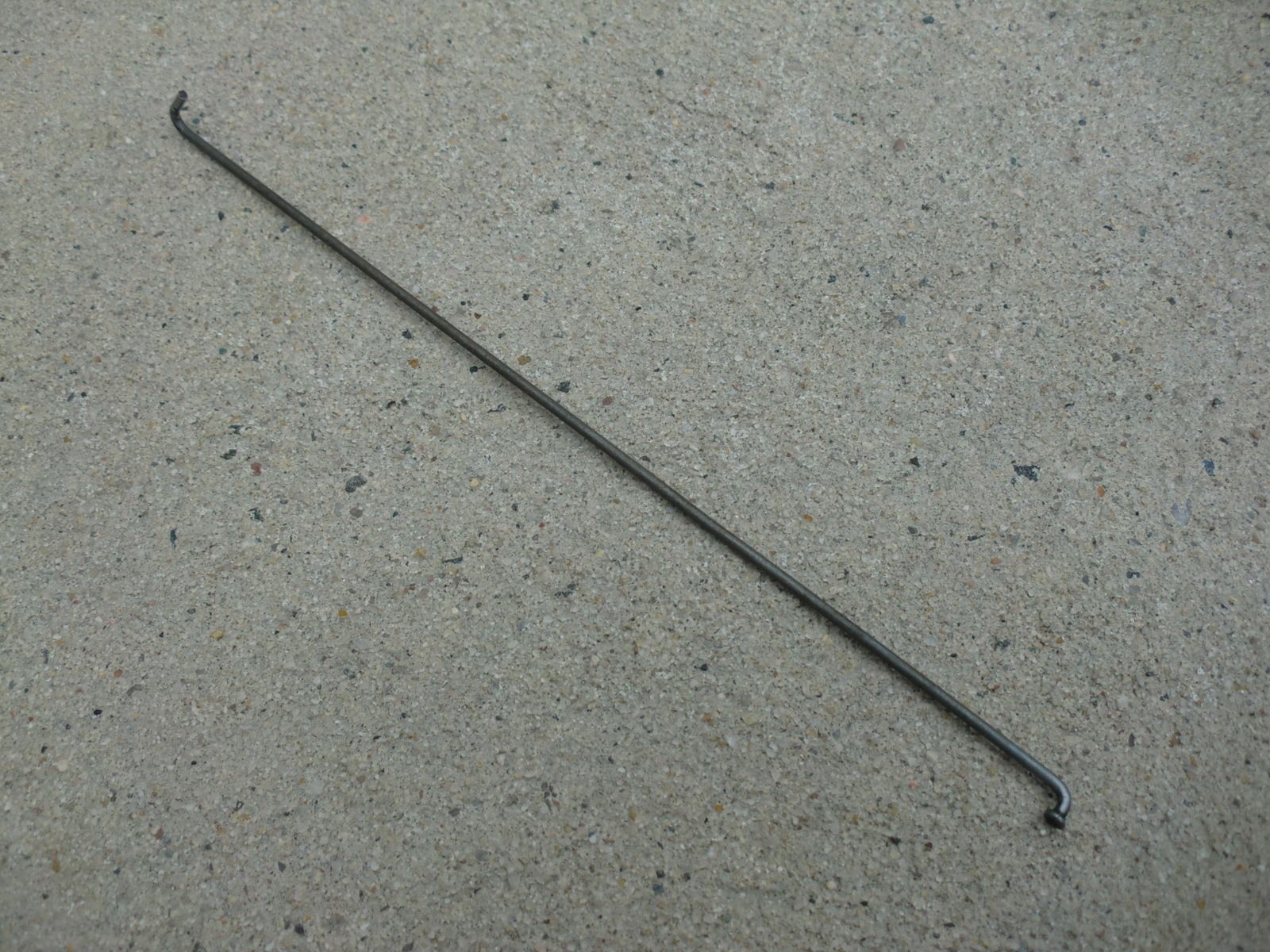

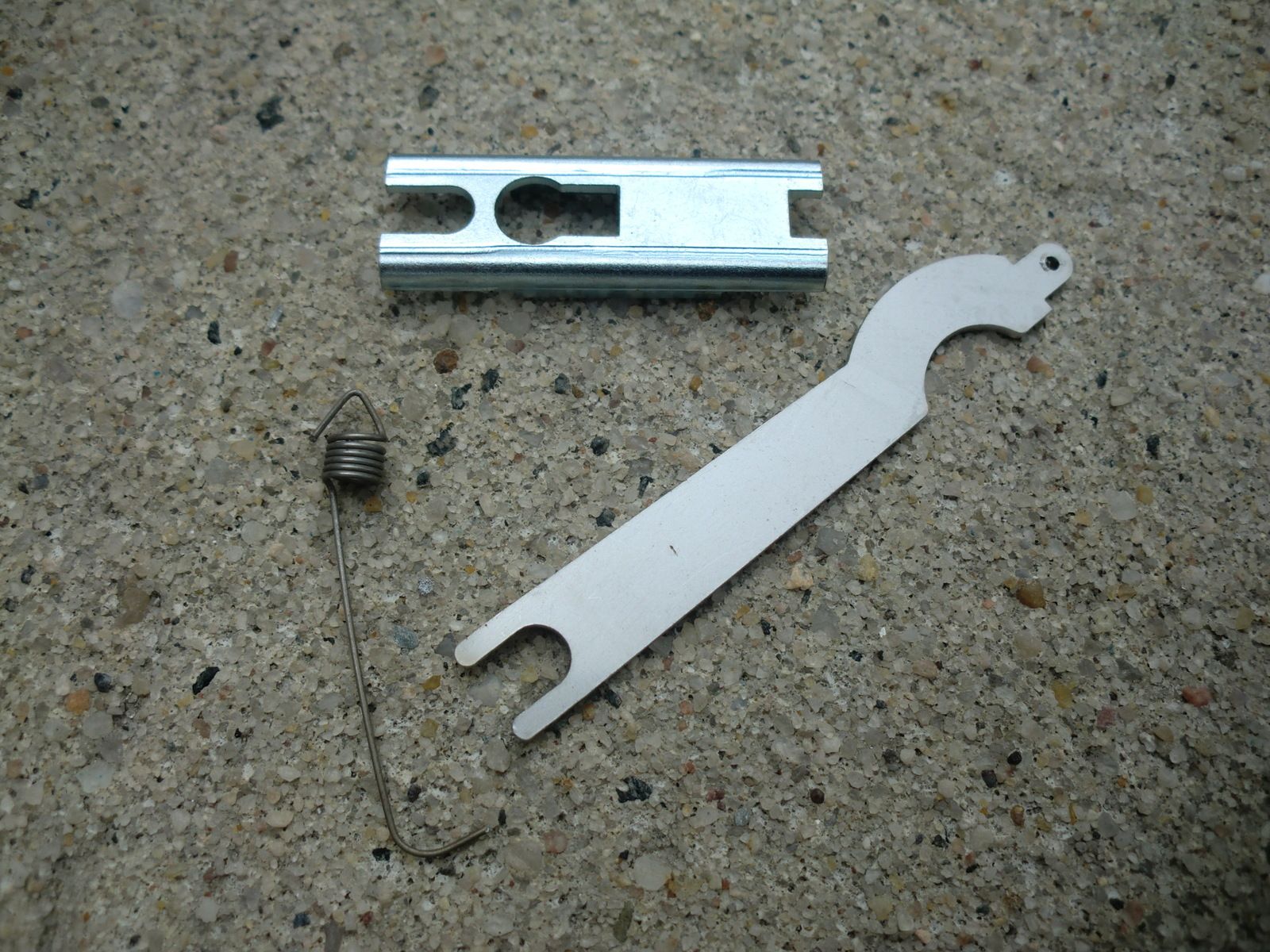

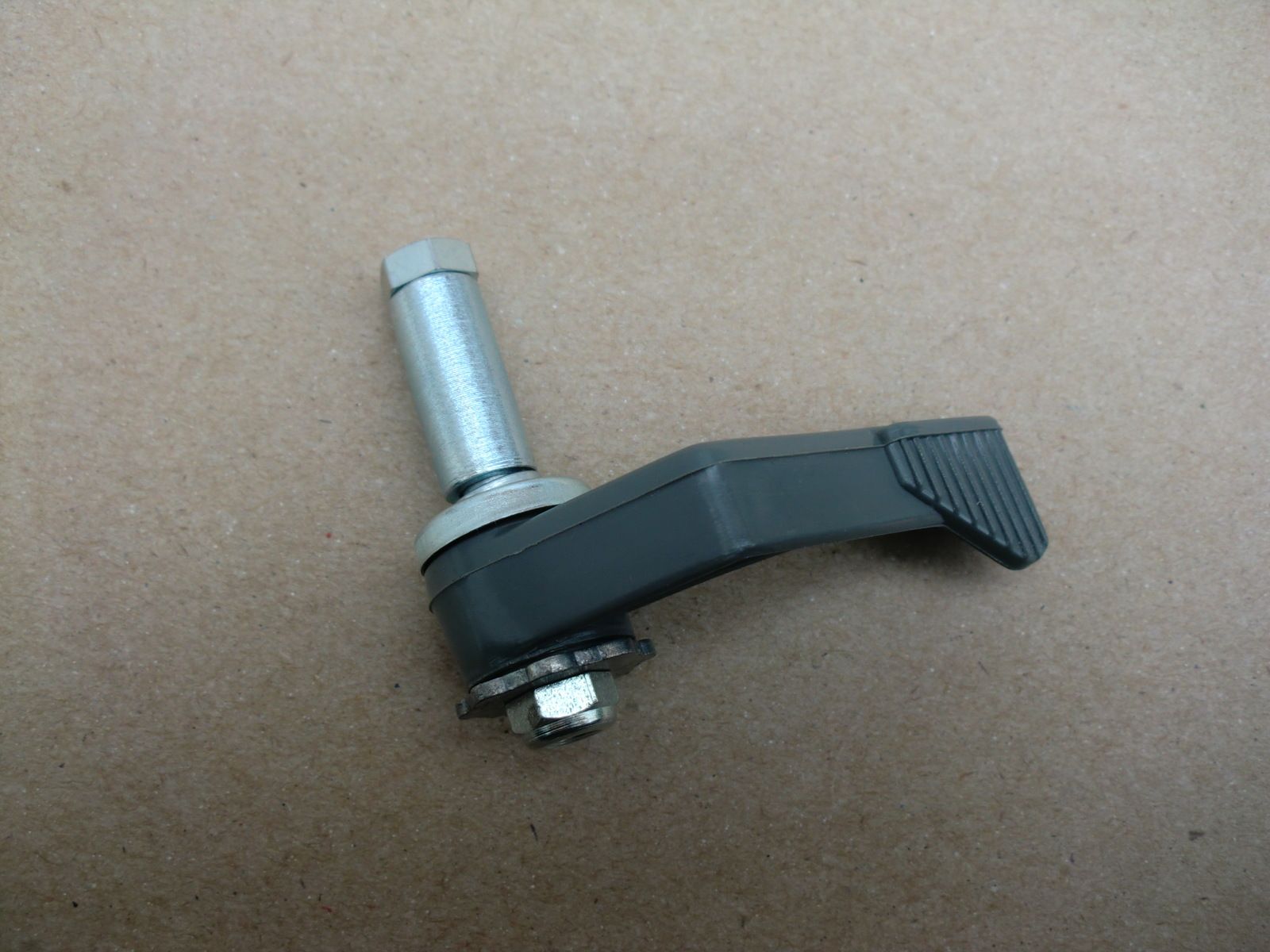

decompression lever set 12

~ fits 330, 660, 1010, 1400, 1700, 2200 V1

~ includes bar, lever and spring

decompression valve 5

~ fits 2200 V2, 3300, 3800, 4600, 5000, Micron

decompression valve adjusting nut 5

~ fits 2200 V2, 3300, 3800, 4600, 5000, Micron

decompression valve spring 4

~ fits 2200 V2, 3300, 3800, 4600, 5000, Micron

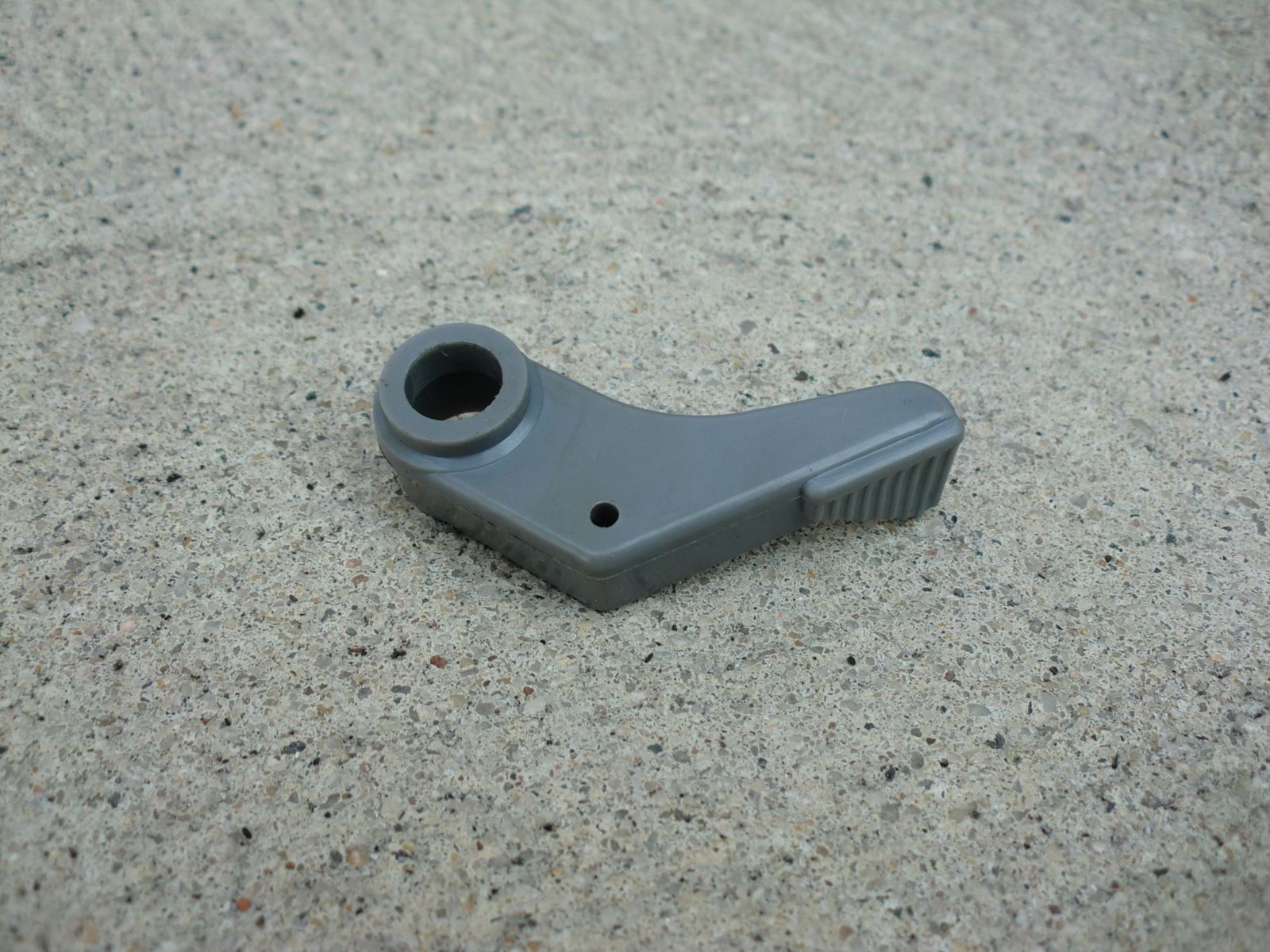

decompression valve lever 3

~ fits 4600, 5000, Micron, Flash / 6000, some 3800

decompression valve lever spring 2

~ fits 4600, 5000, some 3800

~ not for MBK 3800 or Hungarian Impex / Cyklopress 3800

decompression valve lever cable clamp 5

~ fits 4600, 5000, some 3800

decompression valve lever, adaptable 8

~ adaptable to 2200 V2, 3300, most 3800

(too thick)

~ note: I will make the necessary modification before shipping to you

cylinder head bolt 5

lift-out disengagement lever 30

~ fits 2200 V2, 3300, most 3800

lift-out disengagement lever 20

~ fits MBK 3800, Impex / Cyklopress 3800

engine plate lever 30

~ fits 4600 V3

~ adaptable to 4600 V1 / V2 and 5000

engine plate lever spring 4

~ fits 4600, 5000, some 3800

motor raising crank 38

~ fits 4600 V3

~ adaptable to 4600 V1 / V2 and 5000

motor raising crank ball 4

~ fits 4600, 5000, some 3800

motor raising crank & lever set 42

~ fits 5000, Pli-Solex, 4600 V1, 4600 V2, some 3800

~ adaptable to 4600 V3

~ includes raising crank, plate lever, lever bushing, crank guide

piston, short skirt, w/ pin & clips 30

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

piston, long skirt, w/ pin & clips 30

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

piston rings, set, 3 rings 18

~ fits all 3-ring pistons

piston / rings set, super high quality 75

~ slightly oversize, 39.40, to compensate for slight wear of cylinder

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

piston rings, set, 2 rings 25

~ fits 1010, 1400, 1700

piston rings, set, 2 rings 25

~ fits 45 cc

cylinder base stud 2

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

M6 hex nut, tall, 9 mm ATF 1

~ height 6 mm

~ Solex part number 00050

~ used for cylinder base nut, engine mount bolts, upper exhaust mount,

front brake block holder

engine hardware set 25

~ fits 1700, 2200, 3300, 3800, 4600, 5000, Micron

~ 29 pieces

~ 10 mm ATF head

~ includes 4 cyl. head bolts w/ spacers, 4 cyl. base nuts w/ lock washers,

4 cyl. studs, 8 side cover screws, 1 crankcase access screw

M6 copper washer 1

~ for crankcase side cover screws (8 required)

~ for fuel pump pillar (1 required)

~ for crankcase access bolt (1 required)

gasket set, high quality 16

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

~ be wary of less expensive gasket sets that are not made to the correct specifications,

or of the correct material

connecting rod 65

~ fits 3300, 3800, 4600, 5000, Micron

connecting rod bearing, small end 10

~ fits 3300, 3800, 4600, 5000, Micron

connecting rod bearing, big end 10

~ fits 3300, 3800, 4600, 5000, Micron

crankshaft, secondhand 60

~ very good condition

~ fits 3800, 4600, 5000, Micron

crank-pin bushing 8

~ fits 3300, 3800, 4600, 5000, Micron

crank-pin washer 2

~ fits 2200, 3300, 3800, 4600, 5000, Micron

crank-pin nut 2

~ fits 2200, 3300, 3800, 4600, 5000, Micron

crankcase bearing, high quality 10

~ fits all Velosolex Solex

stator bearing, high quality 10

~ fits all Velosolex Solex

sealing washer 5

~ fits 2200, 3300, 3800, 4600, 5000, Micron

crankcase wiper seal 20

~ fits 2200, 3300

crankcase wiper seal ring 5

~ fits 2200, 3300

crankcase wiper seal 8

~ fits 1966-68 3800

crankcase wiper seal 6

~ fits 1969 and later 3800, 4600, 5000

crankcase, secondhand > 75

~ with new bearing & wiper seal installed > 140

~ good condition, 5 xxx xxx serial number

~ fits 3800, 4600, 5000, Micron

---------------------------------------------------------------------------------------------------------

Fuel System

fuel tank, white or black, w/ cap, 75

~ fits 3300, 3800, 4600, 5000, Micron

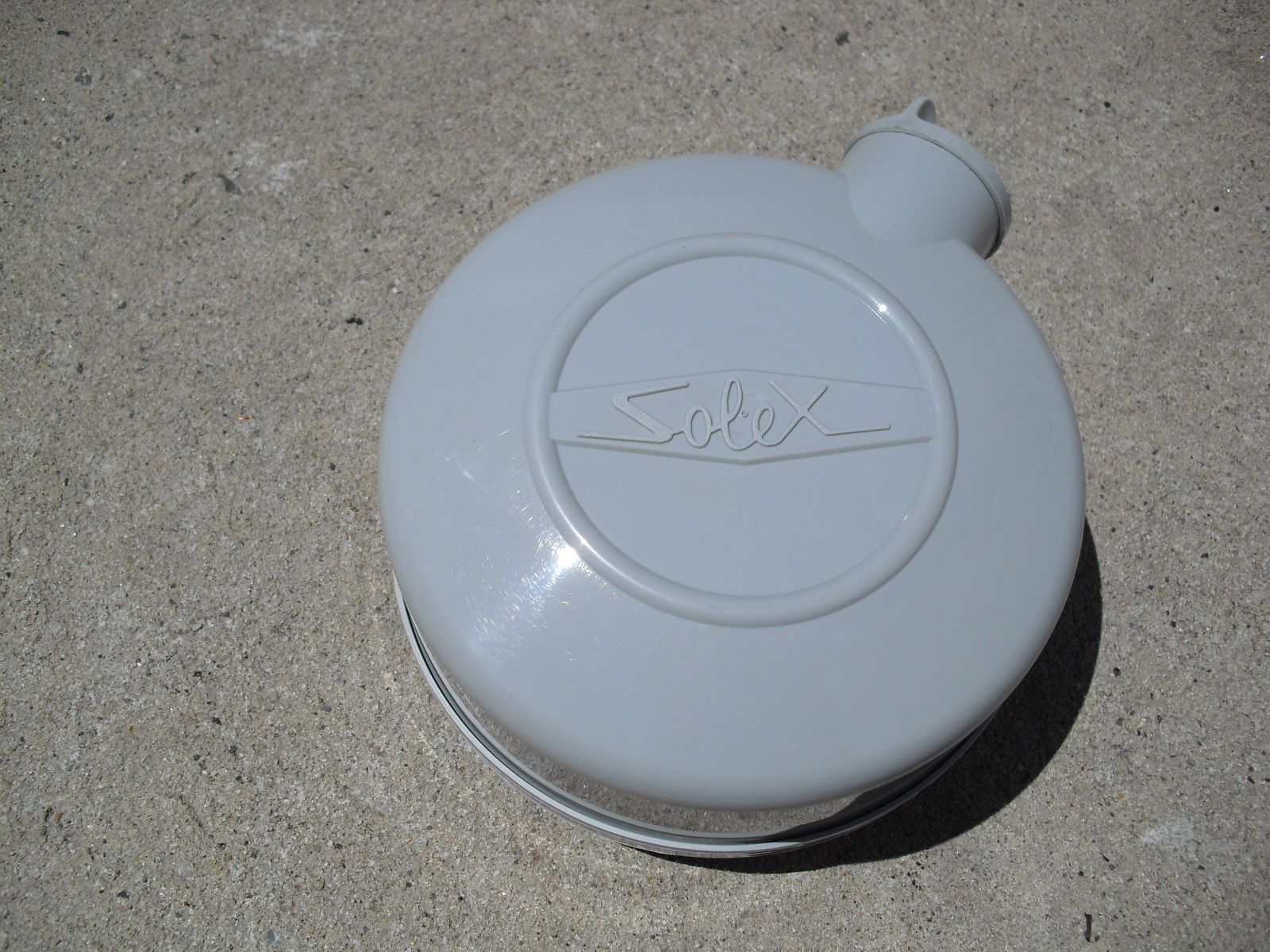

fuel tank, gray, w/ cap, 75

~ for S 3800 Luxe

~ fits 3300, 3800, 4600, 5000, Micron

fuel tank cap, white or black, with O-ring 12

~ fits 3800, 4600, 5000, Micron

fuel tank cap O-ring 2

~ fits 3800, 4600, 5000, Micron

fuel return / overflow tube, clear 2

~ fits 3300, 3800, 4600, 5000

fuel return / overflow tube, black 2

fuel return / overflow tube 3

~ fits 45 cc, 330, 660, 1010, 1400, 1700, 2200

fuel tank filter 4

~ fits 3300, 3800, 4600, 5000, Micron

video: How to replace the Velosolex Solex fuel tank filter

fuel tank filter screen sock 8

~ fits 45 cc, 330, 660, 1010, 1400, 1700, 2200

fuel suction pipe, steel, high quality 15

~ between fuel tank and fuel pump

~ fits 3300, 3800, 4600, 5000, Micron

fuel supply pipe, steel, high quality 15

~ between fuel pump and carburetor

~ fits 3300, 3800, 4600, 5000, Micron

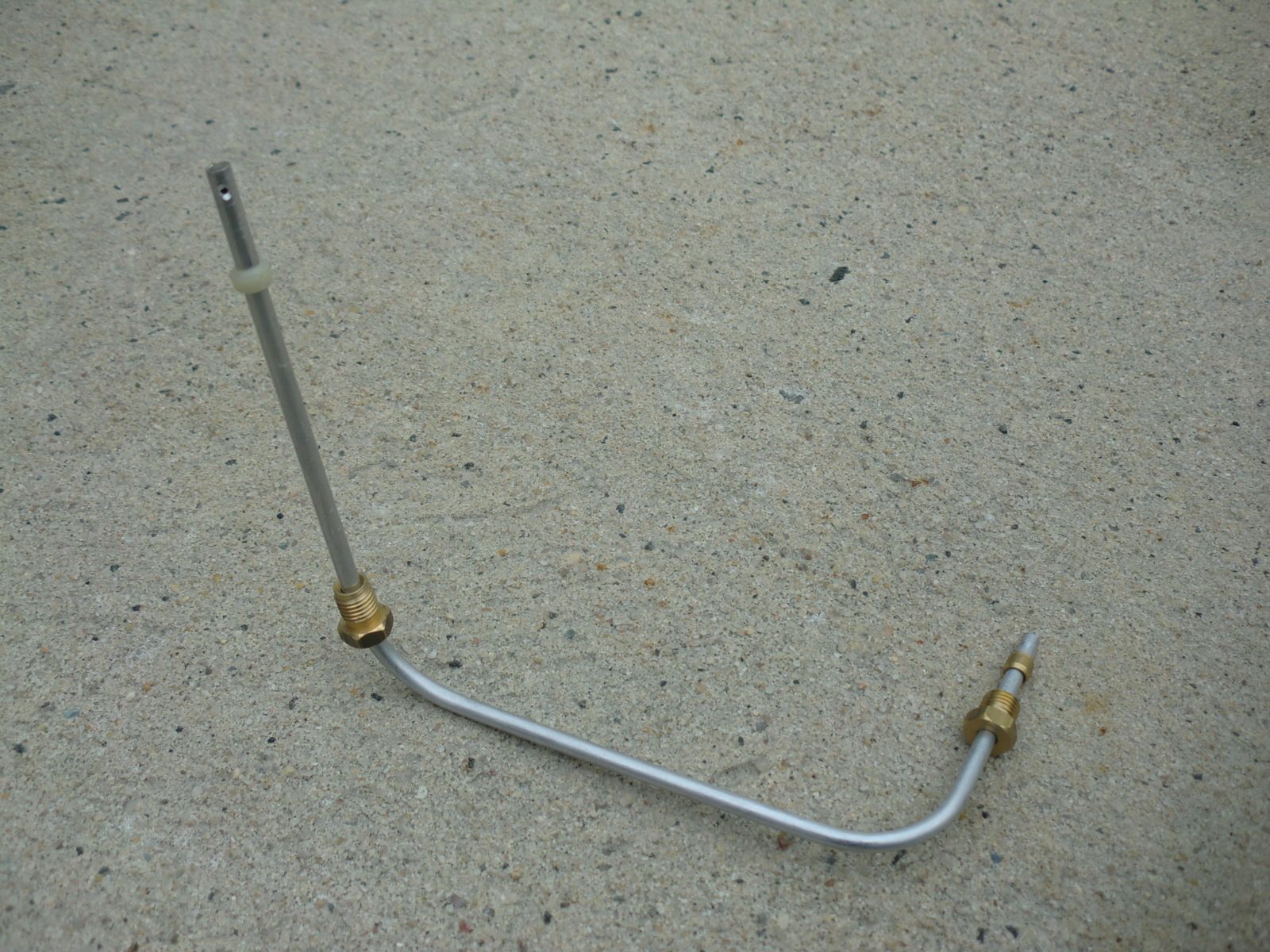

fuel supply pipe set 15

~ between fuel pump and carburetor

~ includes pipe, union nuts, ferrules

~ fits 330, 660, 1010, 1400, 1700, 2200

plastic ferrule 3

~ for fuel supply pipe union nut at carburetor

~ fits 330, 660, 1010, 1400, 1700, 2200

fuel pump 30

~ fits 3800, 4600, 5000, Micron, adaptable to 3300

fuel pump membrane / diaphragm, high quality 4

~ fits all Velosolex Solex

fuel pump plastic seating piece 4

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

video: How to install the Velosolex Solex fuel pump plastic seating piece

fuel pump check balls & seats, set 6

~ for rebuilding 2200 V2, 3300, 3800, 4600, 5000, Micron pumps

video: How to rebuild the Velosolex Solex fuel pump

M6 copper washer 1

~ for fuel pump pillar (1 required)

~ for crankcase access screw (1 required)

~ for crankcase side cover screws (8 required)

fuel pump repair kit 15

~ for 3300, 3800, 4600, 5000, Micron

~ includes pump seating piece, diaphragm, M6 copper washer,

check balls & check ball seats

video: How to rebuild the Velosolex Solex fuel pump

video: How to install the Velosolex Solex fuel pump plastic seating piece

carburetor 89

~ fits 3300, 3800, 4600 V1, 5000, Micron,

adaptable to 4600 V2/V3

note: made in India - not the best quality.

Better than nothing, but try to disassemble and clean your original carburetor if possible

video: How to disassemble clean and reassemble the velosolex solex carburetor

carburetor, secondhand 125

~ as-is, no guarantees or warranties

~ fits 4600 V2 & V3

carburetor, secondhand 125

~ as-is, no guarantees or warranties

~ fits 1010, 1400, 1700, 2200 V1

carburetor fuel filter, later style 4

~ fits, 4600, 5000, Micron, most 3800

video: How to replace the Velosolex Solex carburetor fuel filter

carburetor fuel filter, early style 4

~ fits 3300, some 3800

video: How to replace the Velosolex Solex carburetor fuel filter

manifold ring seal 2

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

manifold union nut 4

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

fuel jet 6

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

~ choose 28 cc (original)... 30 cc ... or 32 cc

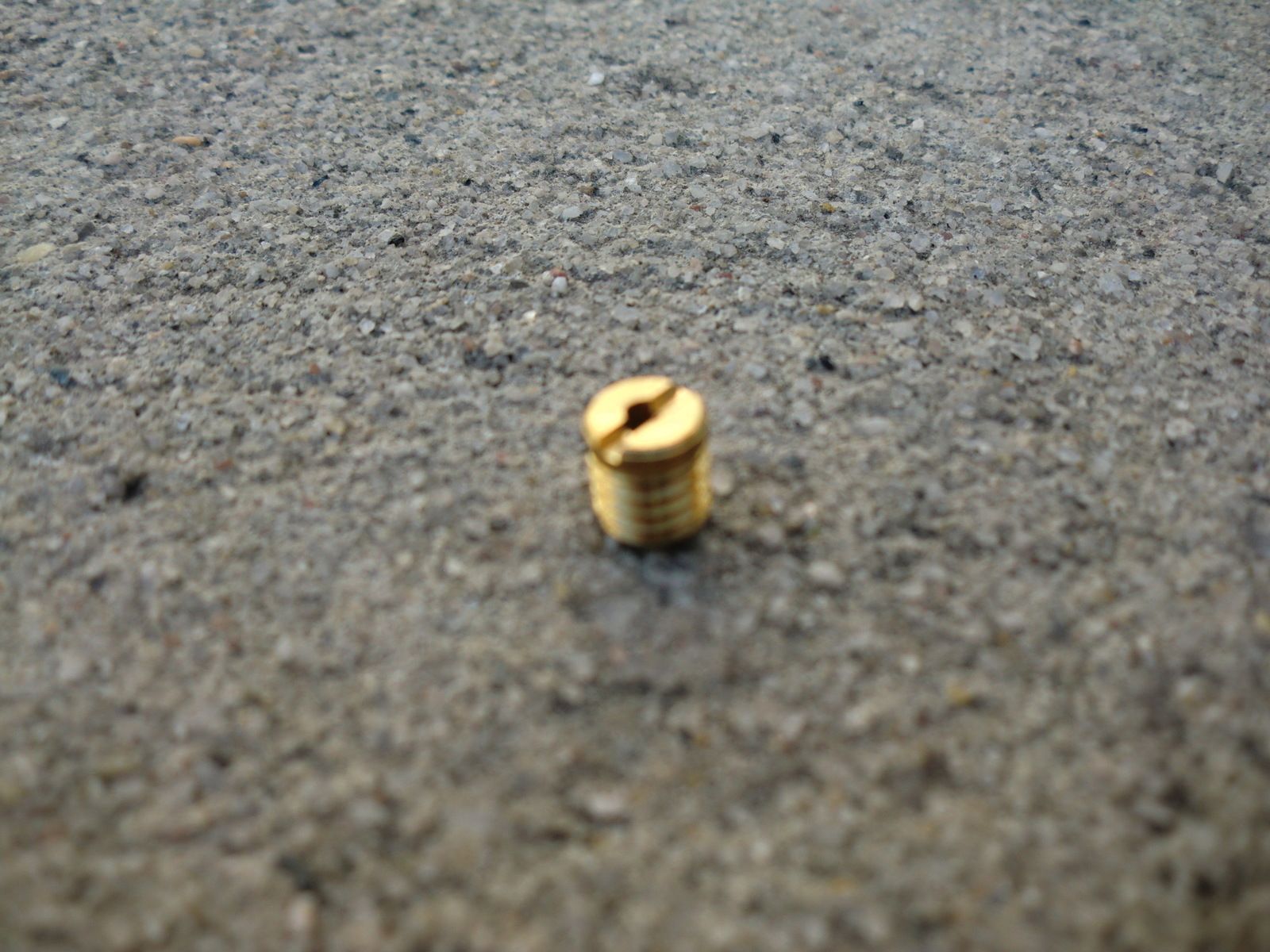

air jet 12

~ fits 3300, 3800, 4600, 5000, Micron

air choke starter valve 10

~ fits 3300, 3800, 4600, 5000, Micron

throttle barrel 10

~ fits 2200 V2, 3300, 3800, 4600, 5000, Micron

throttle lever 4

~ fits 3300, 3800, 4600, 5000, Micron

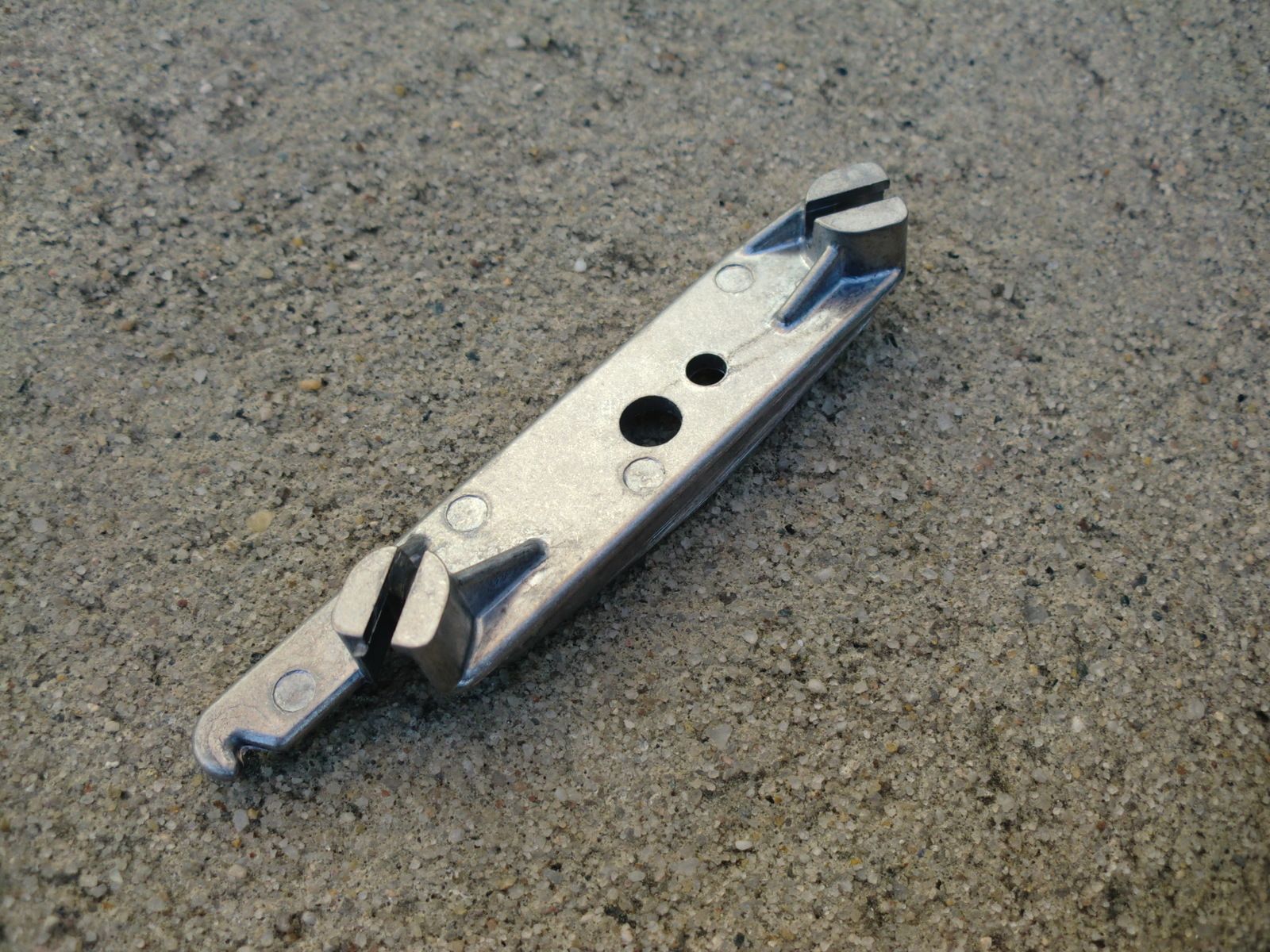

sheath abutment bracket 6

~ fits 3300, 3800, 4600, 5000, Micron

pulley 4

~ fits 3300, 3800, 4600, 5000, Micron

throttle lever return spring 3

~ fits 2200 V2, 3300, 3800, 4600 V1, 5000, Micron

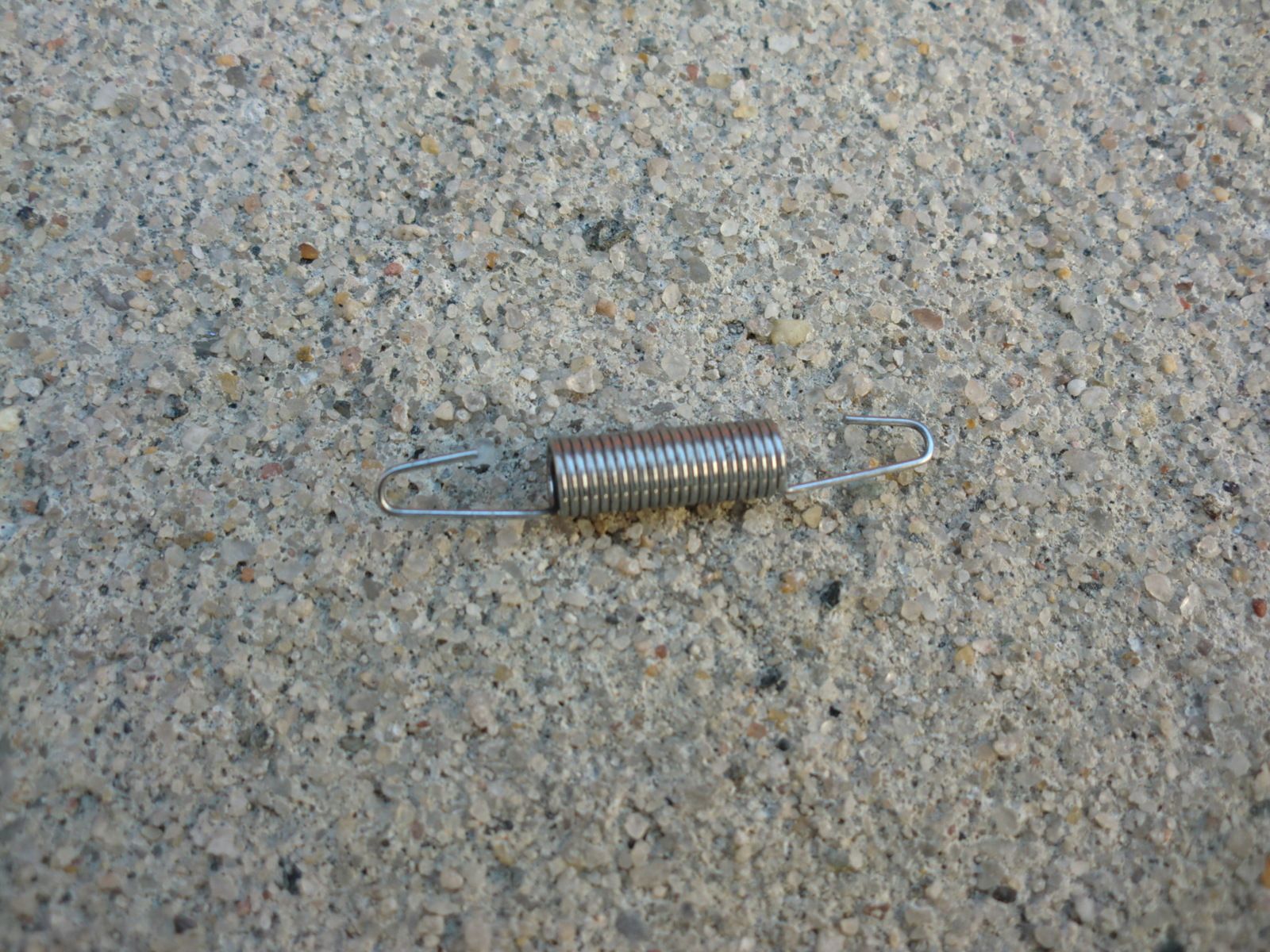

throttle lever return spring 3

~ fits 330, 660, 1010, 1400, 1700, 2200 V1, 4600 V2 / V3

start lever (aka air choke lever) 2

~ fits 2200 V2, 3300, 3800, 4600, 5000, Micron

Video: How to Disassemble, Clean & Reassemble the Solex Carburetor

---------------------------------------------------------------------------------------------------------------

Ignition

spark plug 5

~ fits all Velosolex Solex

video: How to check for spark Velosolex Solex

spark plug wire assembly 19

~ fits 3800, 4600, 5000, Micron, late 3300

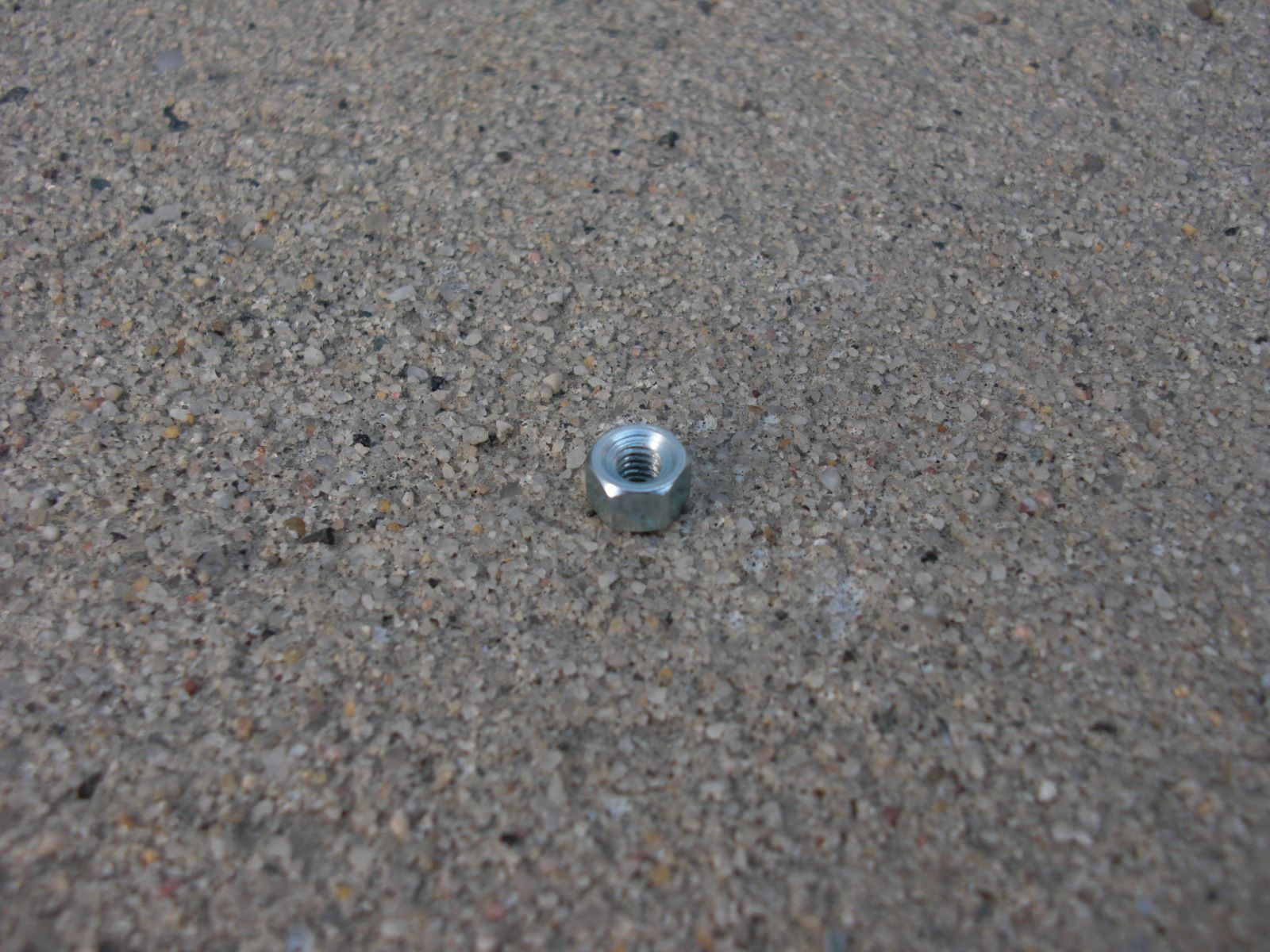

spark plug / wire nut 3

~ special, thick nut

~ fits 2200, 3300, 3800, 4600, 5000, Micron

spark plug / wire cap 20

~ fits 45 cc, 330, 660, 1010, 1400, 1700

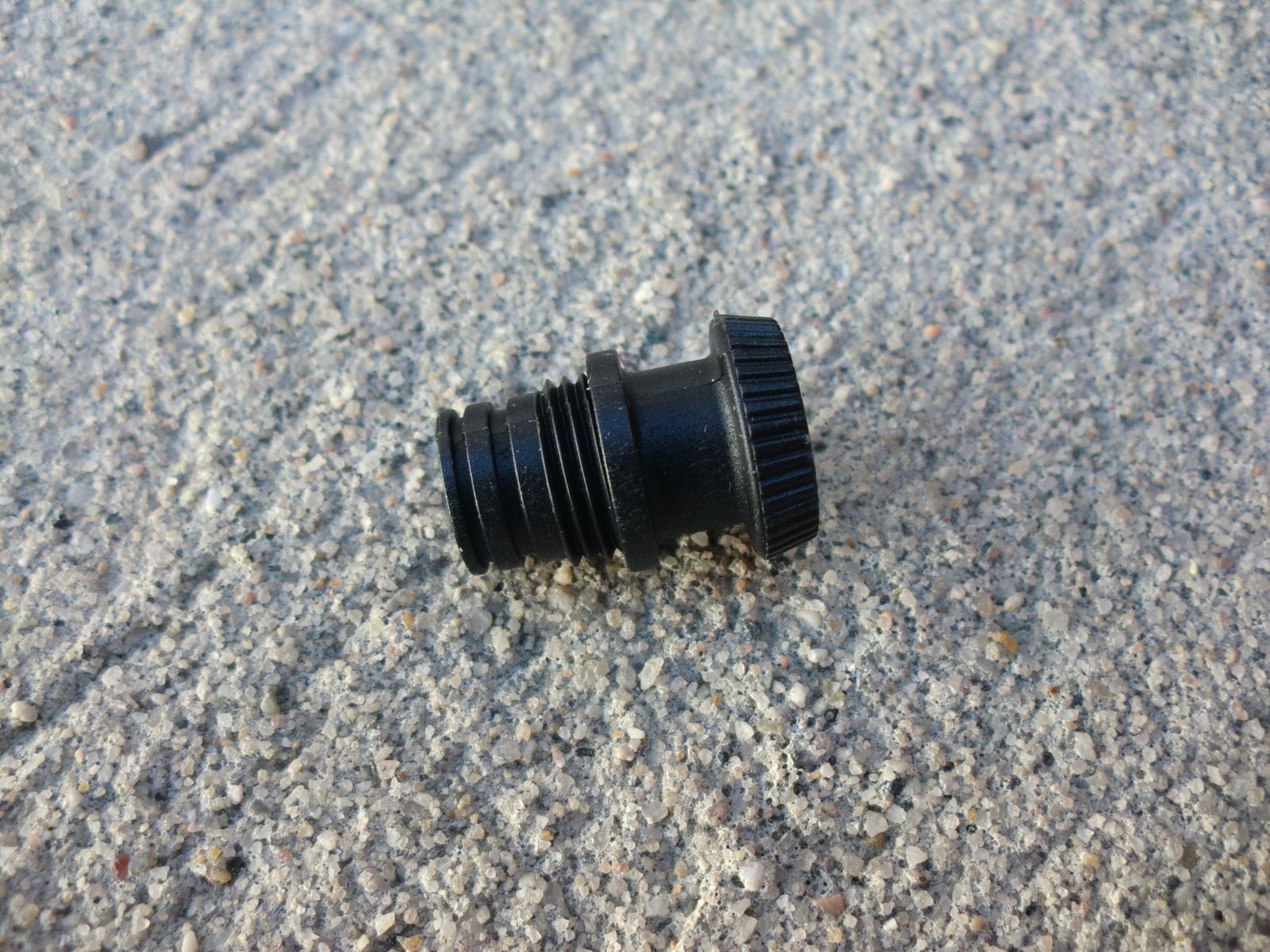

HT terminal 6

~ fits 3800, 4600, 5000, Micron, late 3300

ring eye screw terminal 1

~ fits 2200, 3300, 3800, 4600, 5000, Micron

spark plug wire lead holder plate 1

~ fits 3800, 4600, 5000, Micron

ignition coil 55

~ fits 3800, 4600, 5000, Micron, adaptable to 1700, 2200, 3300

ignition coil 60

~ fits 3800, 4600, 5000, Micron, adaptable to 1700, 2200, 3300

condenser, SEV Marchal, OEM, high quality 16

~ fits all Velosolex Solex

video: How to check the Velosolex Solex condenser capacitor

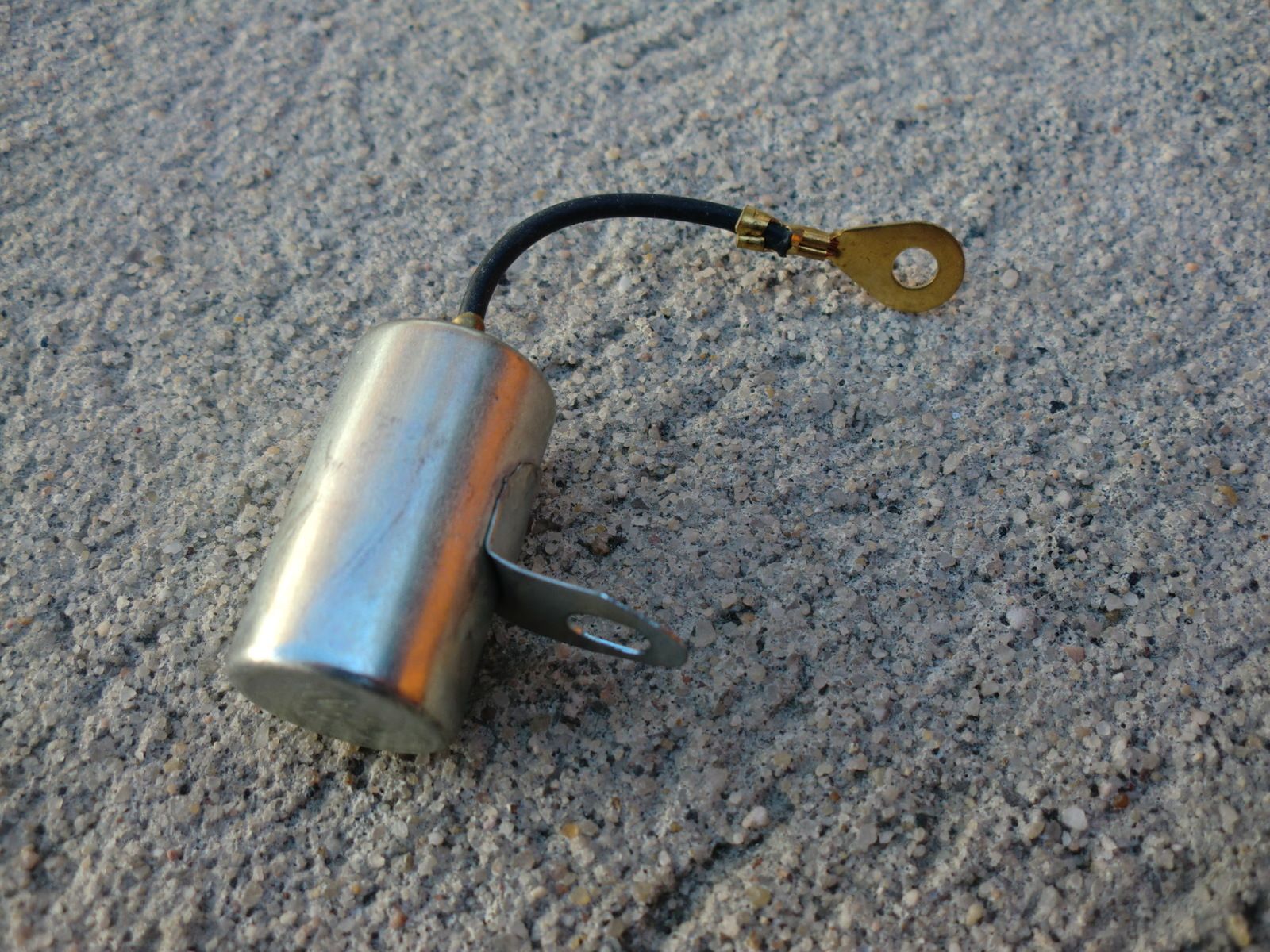

condenser, w/ wire 10

~ adaptable to all Velosolex Solex

condenser, w/ nut 10

~ fits Impex / Cyklopress 3800

~ adaptable to all Velosolex Solex

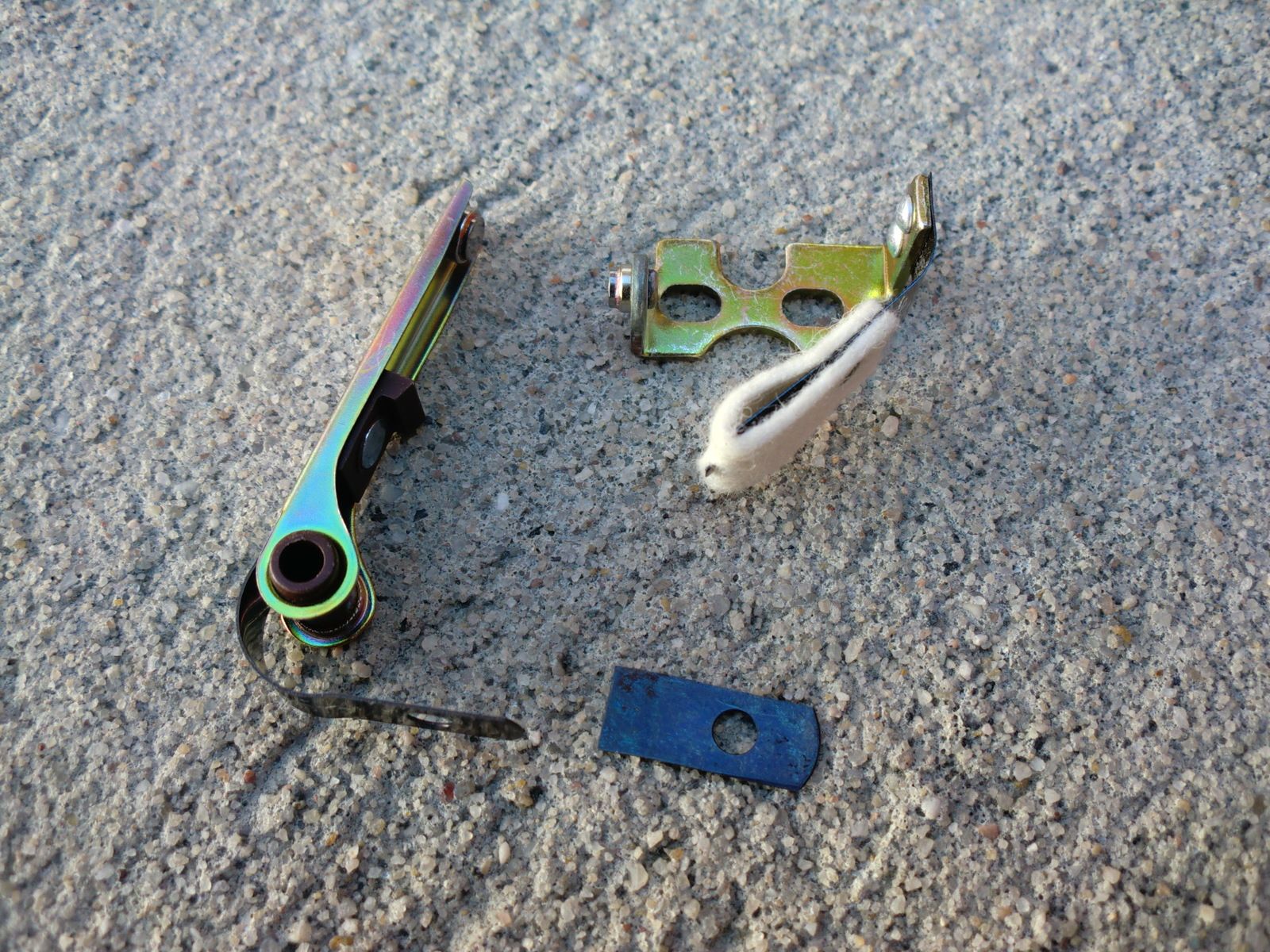

points / contacts 20

~ fits 1700, 2200, 3300, 3800, 4600, 5000, Micron

stator / magneto plate, secondhand 45

~ very good condition

~ fits 3800, 4600, 5000, Micron

flywheel / rotor cover gasket 2

~ fits 1700, 2200, 3300, 3800, 4600, 5000

flywheel / rotor cover 3

~ fits 3800, 4600, 5000, some 3300

flywheel / rotor cover nut 2

~ fits 3800, 4600, 5000, some 3300

flywheel / rotor nut 5

~ fits 3800, 4600, 5000, some 3300

video: How to remove the Velosolex Solex flywheel / rotor

-----------------------------------------------------------------------------------------------------------------

Suspension

engine mounting plates 45

~ fits 3300, 3800, 4600, 5000, Micron, late 2200

mud shield 3

~ fits 1700, 2200, 3300, 3800, 4600, 5000, Micron

slider / friction plate 2

~ fits 2200, 3300, 3800, 4600, 5000, Micron

slider shoulder nut 2

~ fits 2200, 3300, 3800, 4600, 5000, Micron

slider shoulder nut spring 4

~ fits 2200, 3300, 3800, 4600, 5000

upper engine mounting shoulder bolt 4

~ fits 3300, 3800, 4600, 5000, Micron

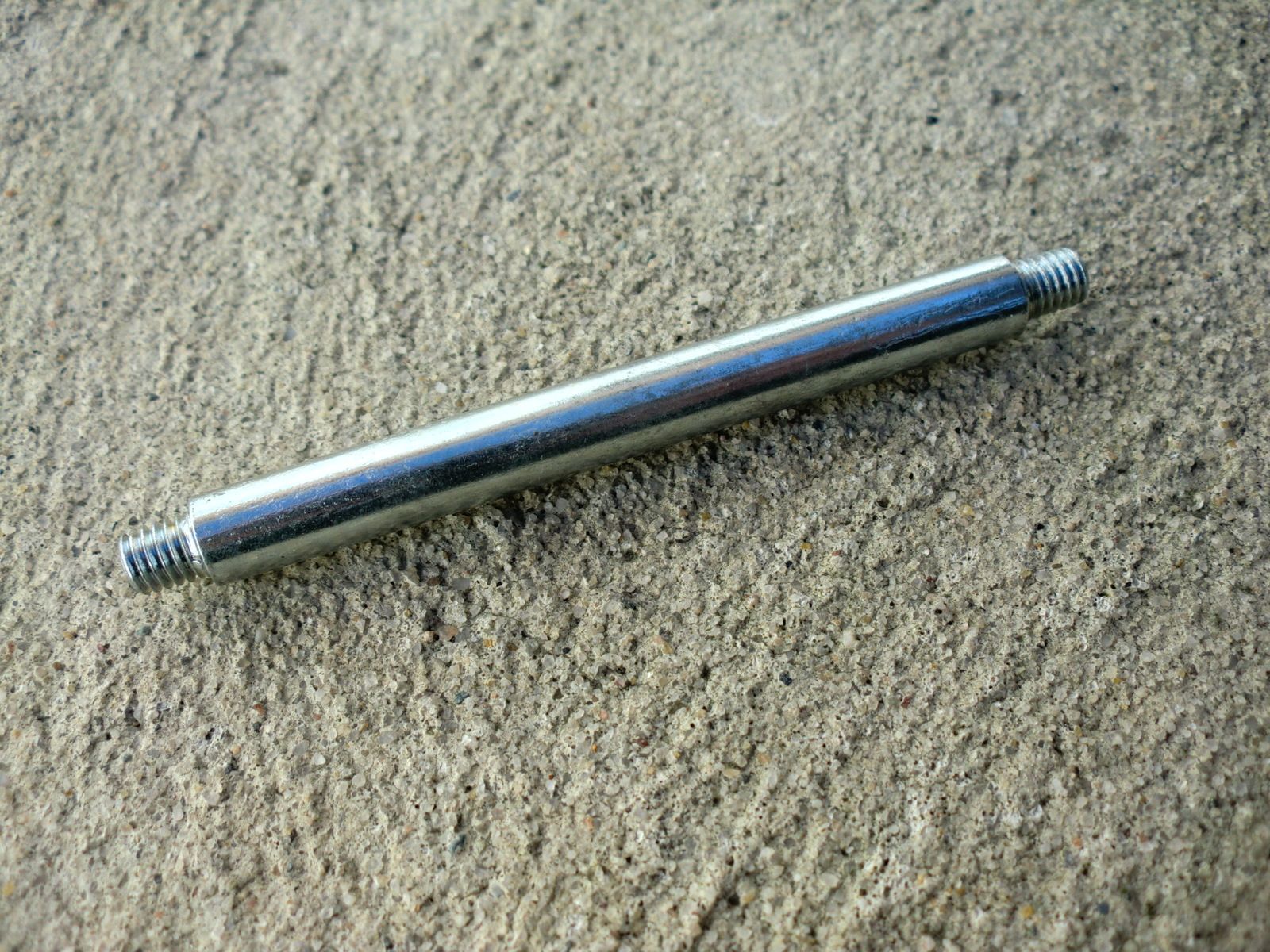

engine pivot axle 2

~ fits 2200, 3300, 3800, 4600, 5000, Micron

engine axle shoulder nut 2

~ fits 2200, 3300, 3800, 4600, 5000, Micron

axle shoulder nut lock plate 2

~ fits 3300, 3800, 4600, 5000, Micron

silentbloc bushing 2

~ fits 2200, 3300, 3800, 4600, 5000, Micron

engine pivot axle assembly 12

~ fits 2200, 3300, 3800, 4600, 5000, Micron

nose fender, black 15

~ fits 2200, 3300, 3800, 4600, 5000

nose fender, chrome 20

~ fits 2200, 3300, 3800, 4600, 5000

suspension spring 4

~ fits 3300, 3800, 4600, 5000

-----------------------------------------------------------------------------------------------------------

Clutch / drive-roller

clutch, new 75

~ fits 2200, 3300, 3800, 4600, 5000, Micron

video: How to check the Velosolex Solex clutch

clutch, secondhand 60

~ very good condition

~ fits 2200, 3300, 3800, 4600, 5000, Micron

clutch nut 4

~ fits 1700, 2200, 3300, 3800, 4600, 5000, Micron

clutch seal cap / deflector 10

~ fits 3800, 4600, 5000, Micron

clutch pads 12

~ fit 2200, 3300, 3800, 4600, 5000, Micron

*Use Loctite Black Max 380 when gluing the clutch pads to their holders.

drive-roller 75

~ fits 3800, 4600, 5000, Micron

drive-roller flange plate seal 10

~ fits 3800, 4600, 5000, Micron

drive-roller / clutch bowl / plate assembly, secondhand 75

~ very good condition

~ fits 3800, 4600, 5000

drive-roller bearings, set 60

~ fits 1700, 2200, 3300

--------------------------------------------------------------------------------------------------------------

Hoods, Covers, Guards

flywheel / rotor hood, white or black 30

~ fits 2200, 3300, 3800, 4600, 5000, Micron

flywheel / rotor hood, gray 30

~ for S 3800 Luxe

~ fits 2200, 3300, 3800, 4600, 5000, Micron

flywheel / rotor hood, black 30

~ fits 330, 660, 1010, 1400

flywheel / rotor hood rubber clip, black 4

~ fits 330, 660, 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

flywheel / rotor hood rubber clip, white 4

~ fits 1700, 2200, 3300, 3800, 4600, 5000, Micron

engine hood, 4600, blue 35

~ 5000 hood also available

engine hood, 4600, orange 35

~ 5000 hood also available

engine hood, 4600, yellow 35

~ 5000 hood also available

engine hood, 4600, black 35

~ 5000 hood also available

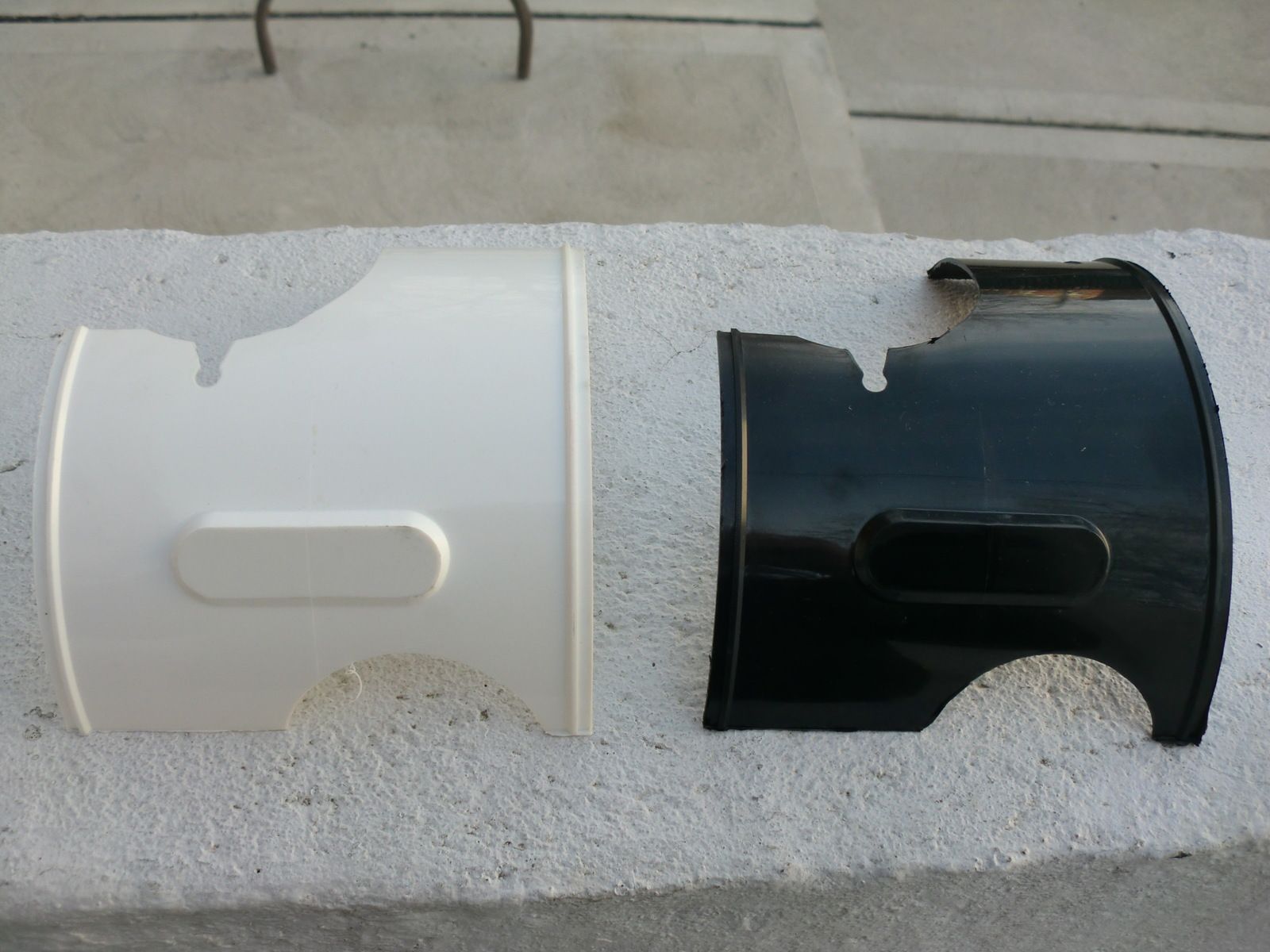

engine hood, white or black 25

~ fits 4600, 5000, Micron, some 3800

engine headlight hood, black 58

~ fits most 3800; adaptable to 3300

engine headlight hood, white 58

~ for 3800 Super Luxe

engine headlight hood, red 58

~ for 3800 Luxe

engine headlight hood, blue 58

~ for 3800 Luxe

mud-cutter bolt screw 2

~ fits 1974 and later 3800

~ used for securing the headlight hood

headlight hood shoulder nut 2

~ fits 1974 and later 3800

~ used for securing the headlight hood

engine headlight hood, black 43

~ fits 2200, adaptable to 1700

cover nut, knurled 5

~ fits 1010, 1400, 1700, 2200

engine guard bumper w/ clamp 80

~ fits 3300, most 3800

engine guard bumper w/ clamp 80

~ fits 4600, 5000, some 3800

----------------------------------------------------------------------------------------------------------

Exhaust Silencers / Mufflers

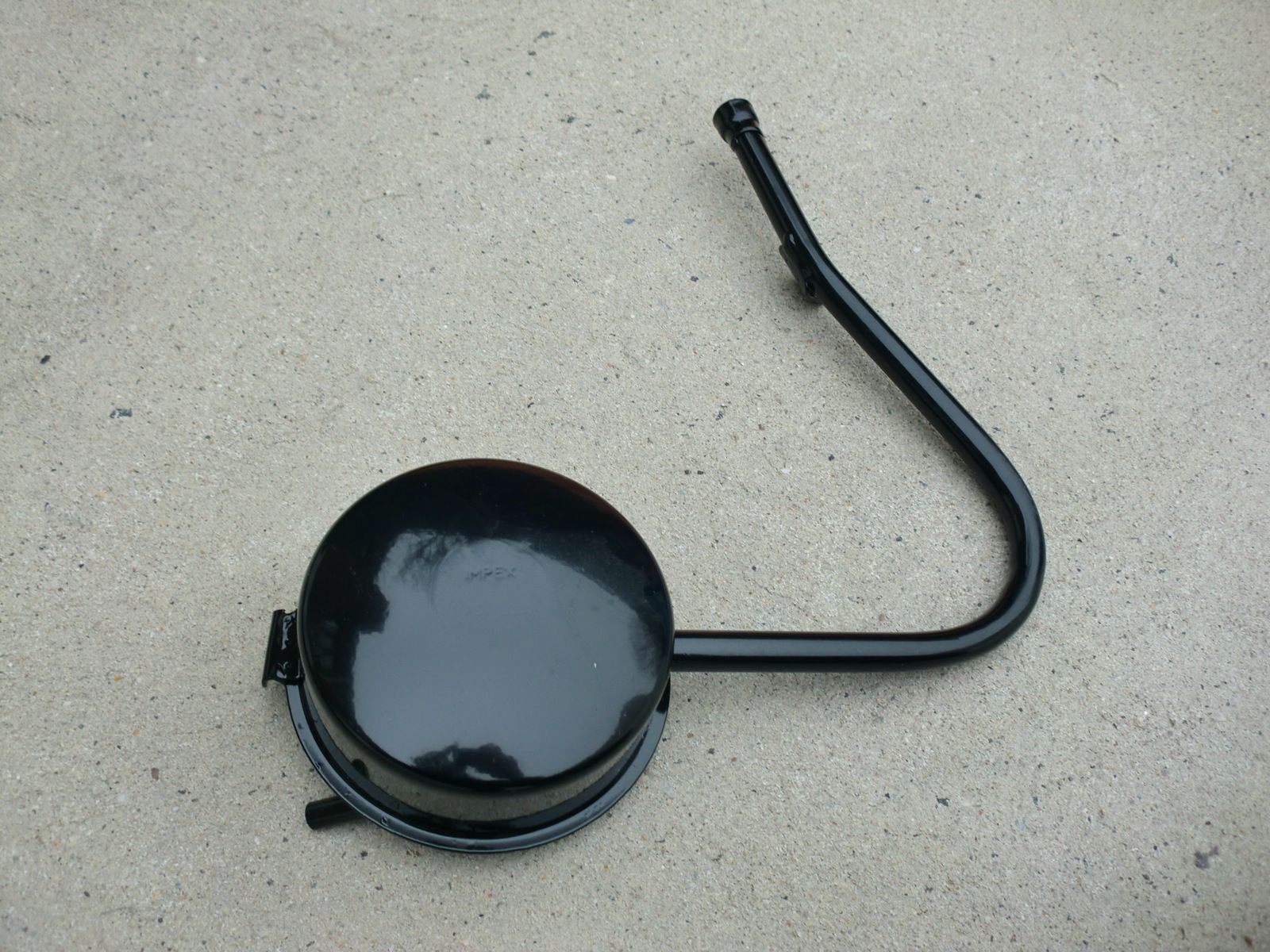

exhaust silencer / muffler, 56

~ fits 1400, 1700, 2200, 3300, 3800, 4600

exhaust silencer / muffler, 50

~ fits 5000

--------------------------------------------------------------------------------------------------

Tools

flywheel / rotor puller 18

~ for all Velosolex Solex (except Flash 6000, Tenor 8000)

video: How to remove the Velosolex Solex flywheel rotor

crankshaft stroke limiter, heavy duty 12

temporarily out of stock

~ for models 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

~ used when removing the flywheel / rotor and tightening / loosening the clutch nut

crankshaft stroke limiter, double-sided 13

~ for models 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000, Micron

~ also fits shaft-drive models FLASH / 6000

~ used when removing the flywheel / rotor and tightening / loosening the clutch nut

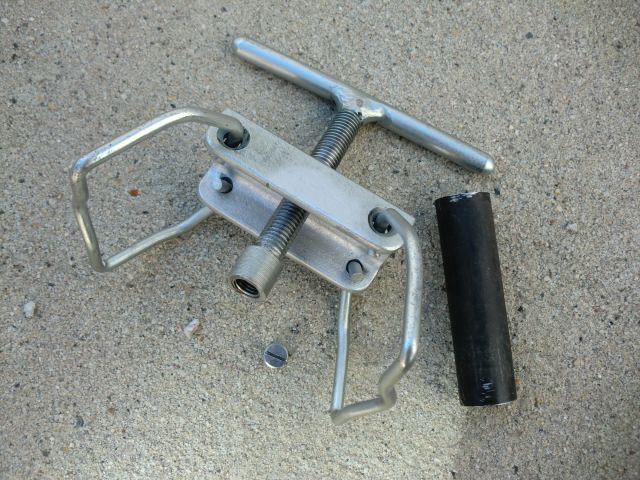

stator bearing puller 35

~ for all Velosolex Solex (except Flash 6000, Tenor 8000)

stator tool 50

~ used for removing and installing the stator

~ for 3800, 4600, 5000, Micron

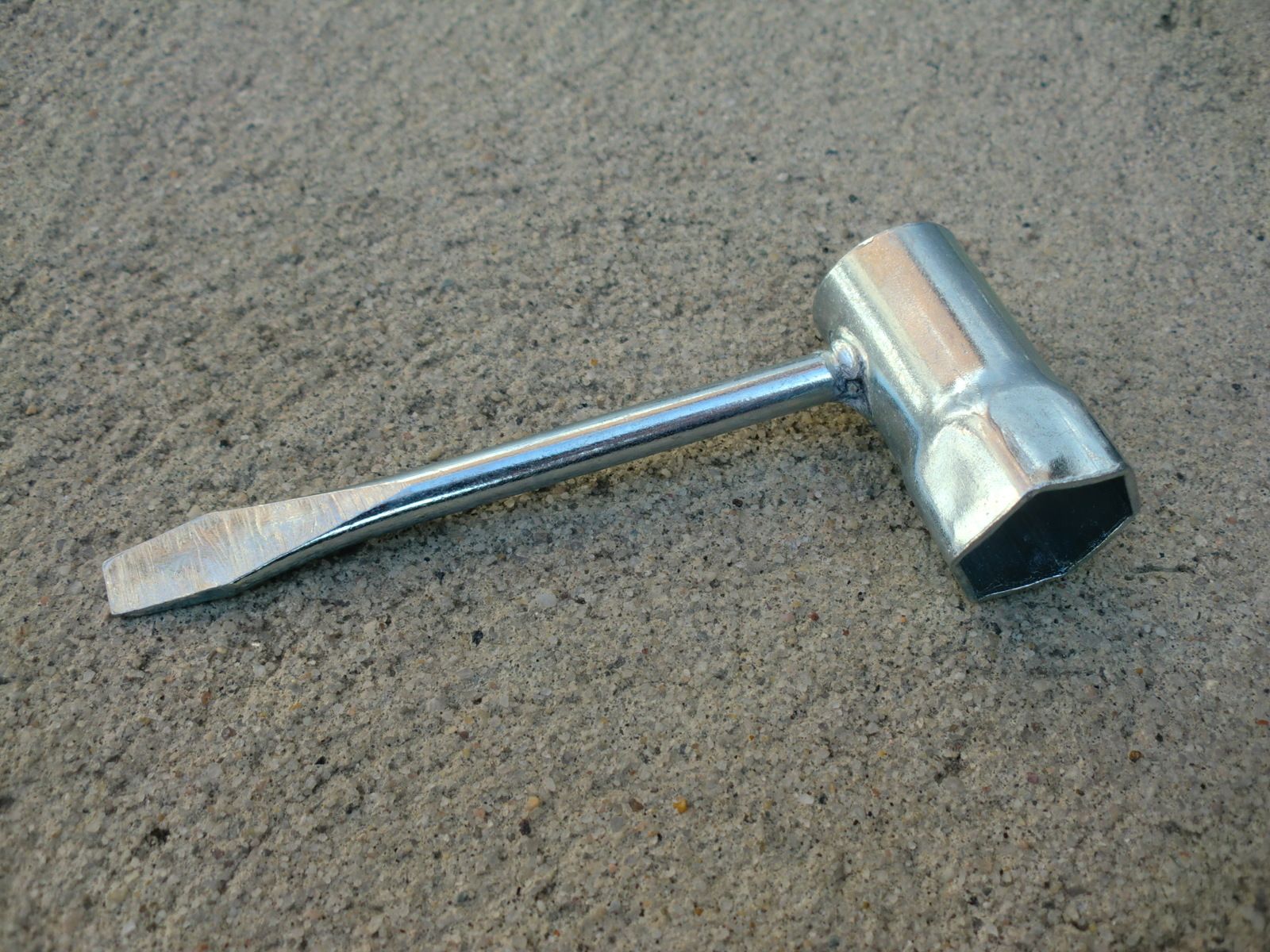

spark plug wrench / screwdriver 5

~ for all Velosolex Solex

~ fits in tool box

7 mm x 9 mm flat wrench 5

~ fits in Solex tool box

14 mm x 17 mm flat wrench 5

~ fits in Solex tool box

tire tool 5

~ fits in Solex tool box temporarily out of stock

~ two required

-------------------------------------------------------------------------------------------------------

Tires, Tubes & Rim Strips

16" ID / 20" OD tires, tubes & rim strips

~ fit models 5000, Pli-Solex

16" VWP / Deli whitewall tire 60

~ high quality tire

16" tube 12

16" rim strip / rim flap 3

-----------------------------------------------------------------------------------------------------------

19" ID / 23" OD tires, tubes & rim strips

~ fit models 1400, 1700, 2200, 3300, 3800, 4600

19" x 1 3/4" VWP / Deli tire 45

~ high quality tire

~ be wary of less expensive, low quality Teknix tires, which are made in China

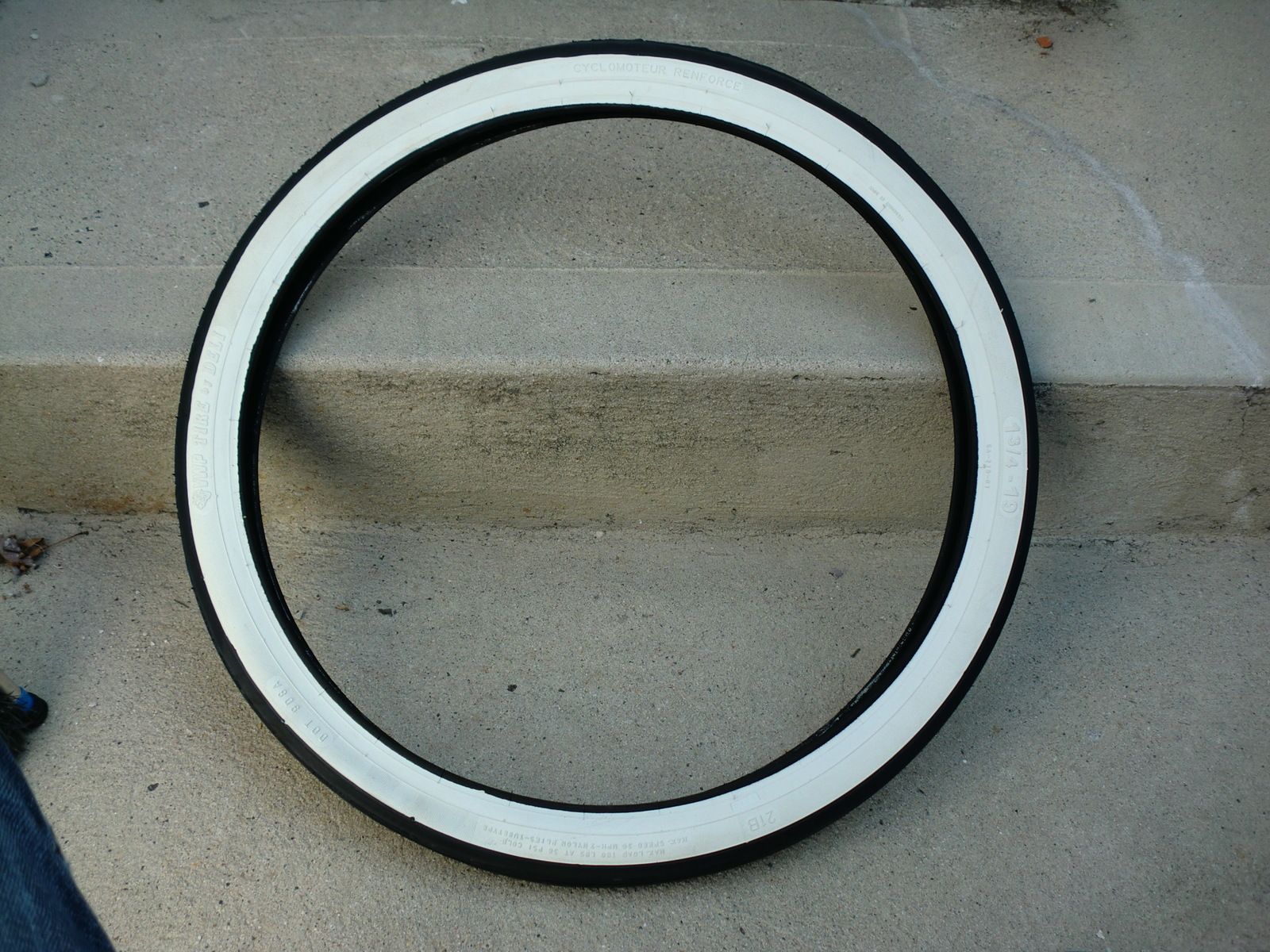

19" x 1 3/4" VWP / Deli whitewall tire 55

~ high quality tire

19" tube 15

~ high quality tube

19" rim strip / rim flap 3

------------------------------------------------------------------------------------------------------

Wheel

bearing ball, 1/4' (6.35 mm), set of 9 balls 5

~ for ATOM hubs, typically 1974 and earlier

~ 18 balls required for each hub / axle

bearing ball, 7/32' (5.55 mm), set of 11 balls 5

~ for later hubs, typically after 1974

~ 22 balls required for each hub / axle

hub cap 2

~ fits 1400, 1700, 2200, 3300, 3800, 4600, 5000

wheel axle nut 7

~ fits 3300, 3800, 4600, 5000

~ adaptable to all Velosolex Solex

front hub 28-hole 25

~ adaptable to 1400, 1700, 2200, 3300, 3800, 4600

note: the original 218 mm & 224 mm spokes cannot be used with this hub

Requires 222 mm spokes

front hub 32-hole 25

~ adaptable to 45 cc / 600, 330, 660, 1010

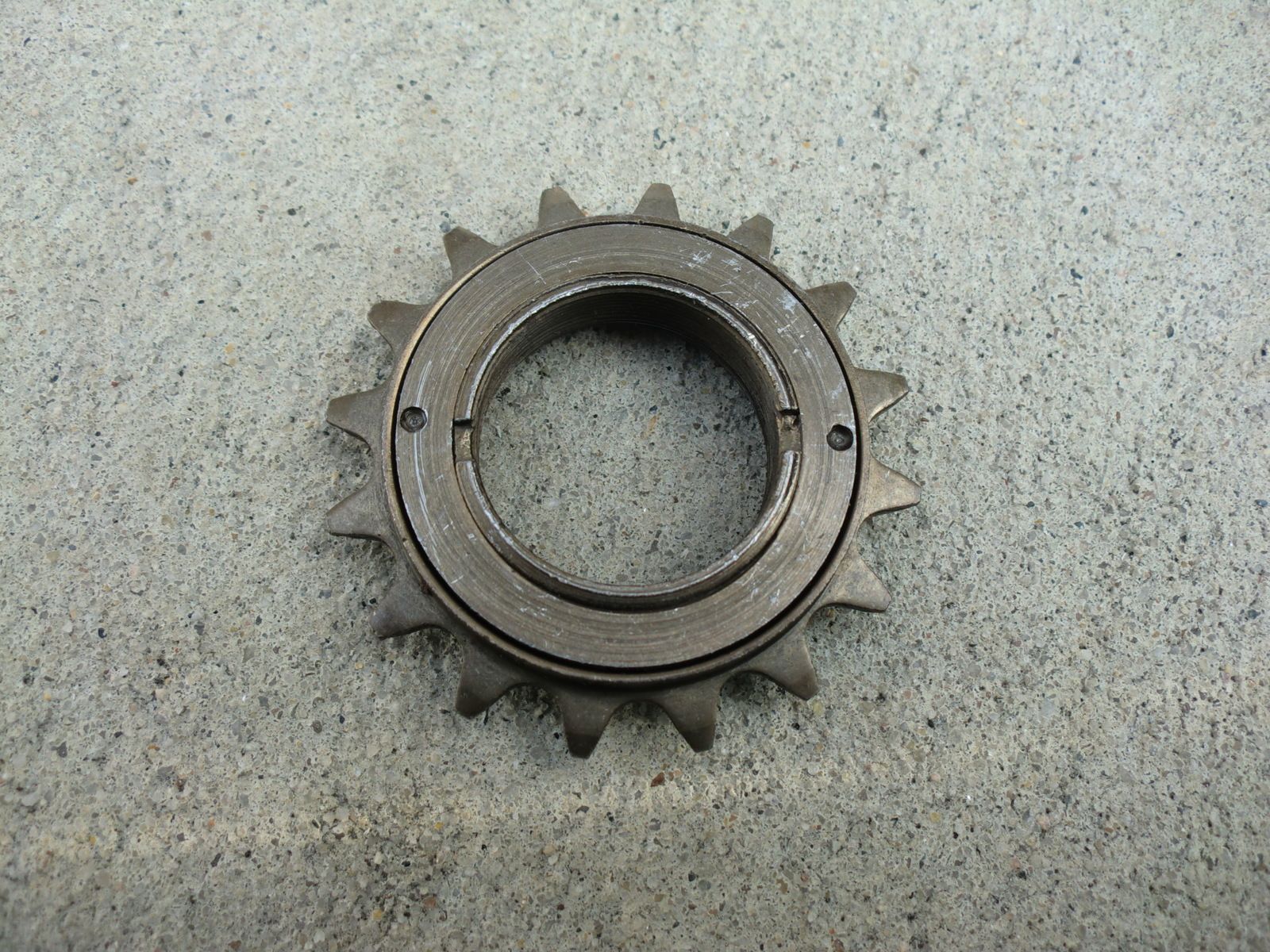

freewheel 15

~ fits 1400, 1700, 2200, 3300, 3800, 4600, 5000

rear hub 80

~ fits 3800, 4600, adaptable to 3300 temporarily out-of-stock

~ complete, with brake shoes

spoke w/ nut, 192 mm each - 3

~ fits rear wheel 3800, 4600, some 3300 set of 28 - 60

spoke w/ nut, 218 mm each - 3

~ fits front wheel of most 1400, 1700, 2200, 3300, 3800, 4600 set of 28 - 60

spoke w/ nut, 222 mm each - 3

~ use with new style hub set of 28 - 60

spoke w/ nut, 224 mm each - 3

~ fits front wheel of some 1400, 1700, 2200, 3300, 3800 set of 28 - 60

~ for double-cross spoke pattern

rim, 19", 28-hole 60

~ fits 1400, 1700, 2200, 3300, 3800, 4600

rim, for 24" tire, 32-hole 50

~ fits 45 cc / 600, 330, 660, 1010

rim, 16", for 20" tire, 28-hole 50

~ fits 5000, Pli-Solex

------------------------------------------------------------------------------------------------------

Brakes

front brake caliper, complete 48

~fits 1400, 1700, 2200, 3300, 3800, 4600, 5000

video: How to assemble and install the Velosolex Solex front brake caliper assembly

brake bar, front 15

~ fits 1400, 1700, 2200, 3300, 3800, 4600, 5000

brake caliper spring 2

~ fits 1400, 1700, 2200, 3300, 3800, 4600, 5000

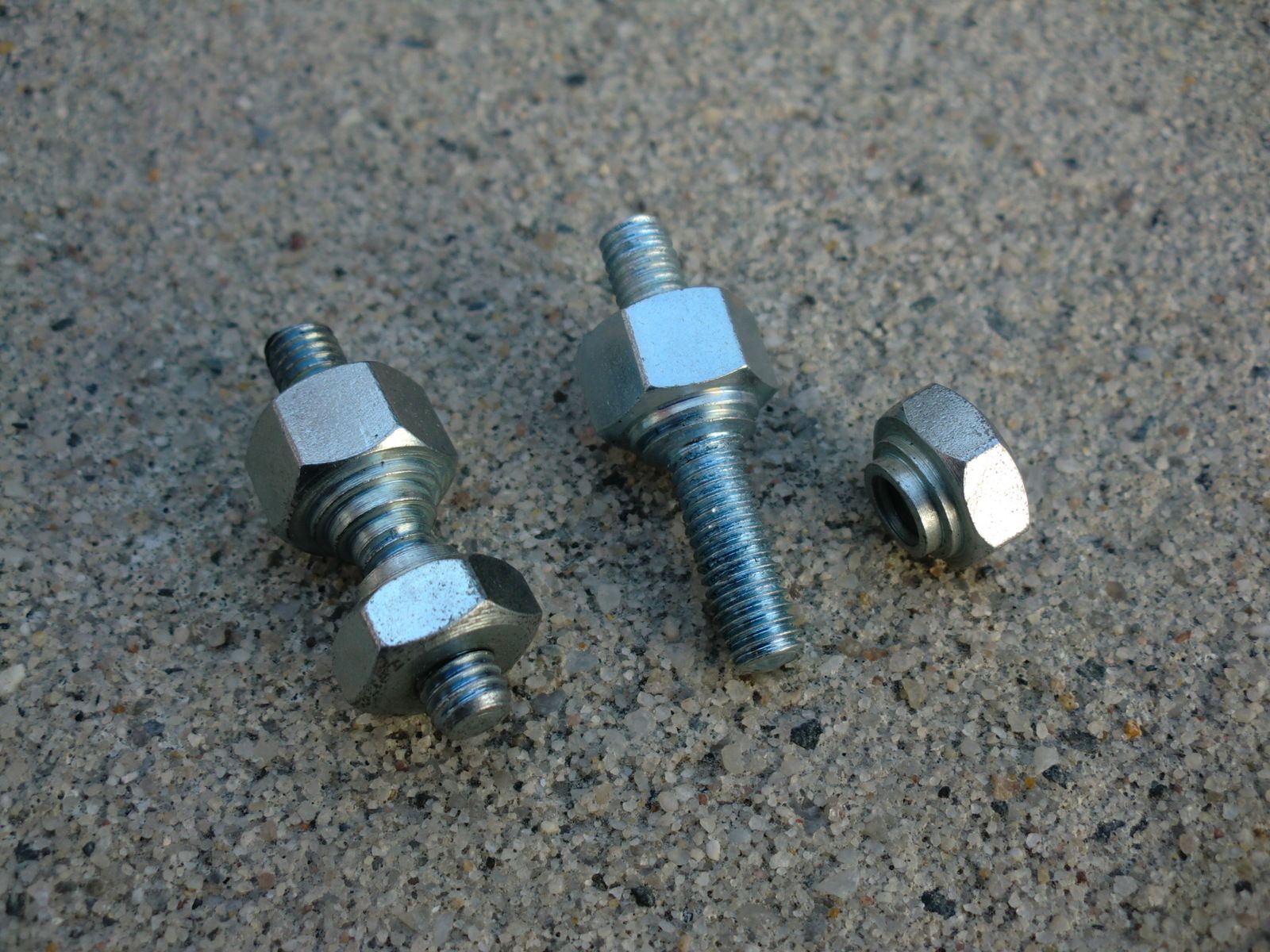

brake caliper studs and shoulder nuts, pair 10

~ fit 2200, 3300, 3800, 4600, 5000

brake caliper arms, set 12

~ fit 2200, 3300, 3800, 4600, 5000

brake caliper cover hood, black 8

~ fits 2200, 3300, 3800, 4600, 5000

brake caliper cover hood, chrome 15

~ fits 2200, 3300, 3800, 4600, 5000

brake shoes, pair 12

~ fit 1400, 1700, 2200, 3300, 3800, 4600, 5000

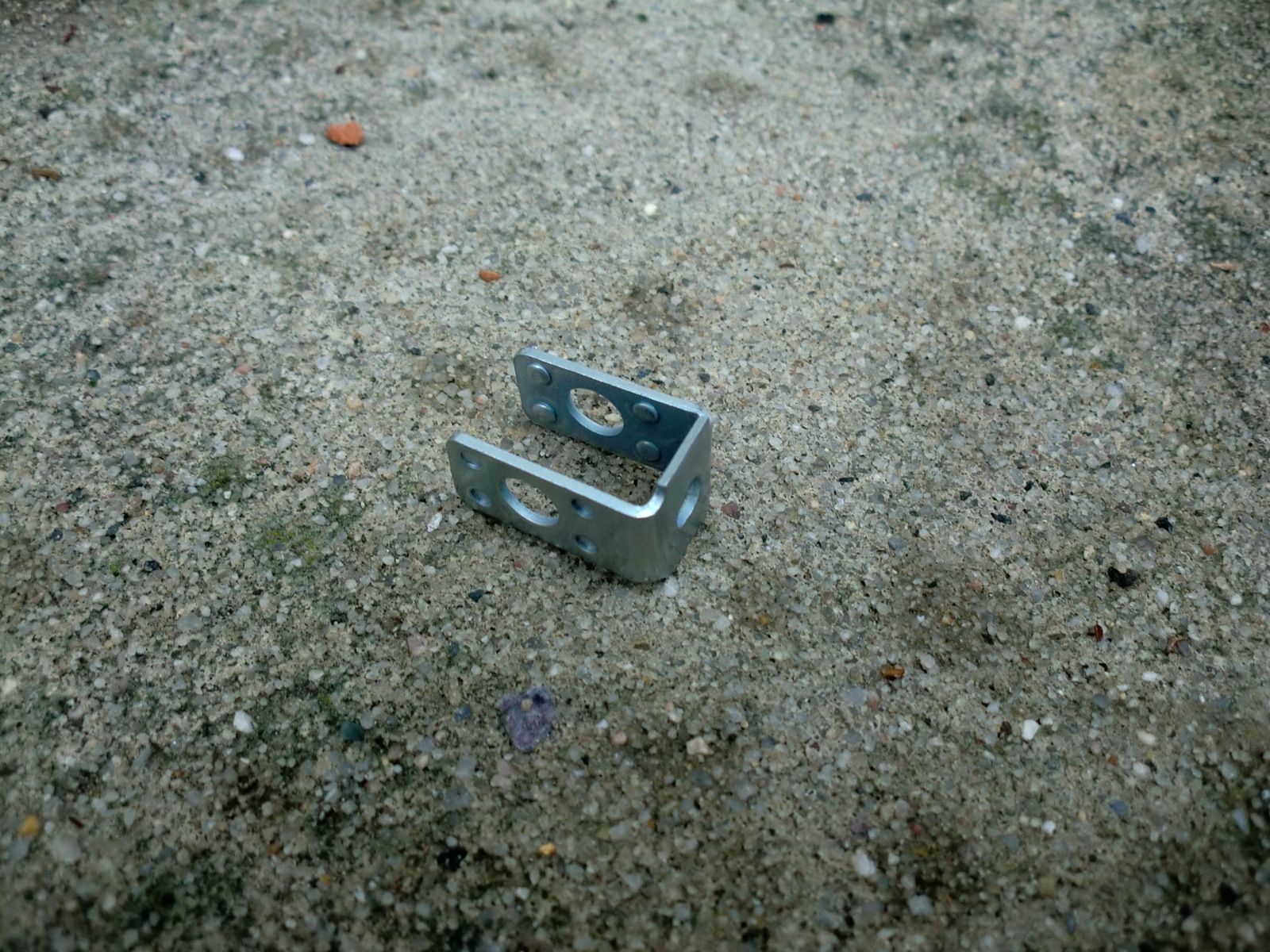

front brake support U 2

~ fits 1400, 1700, 2200, 3300, 3800, 4600, 5000

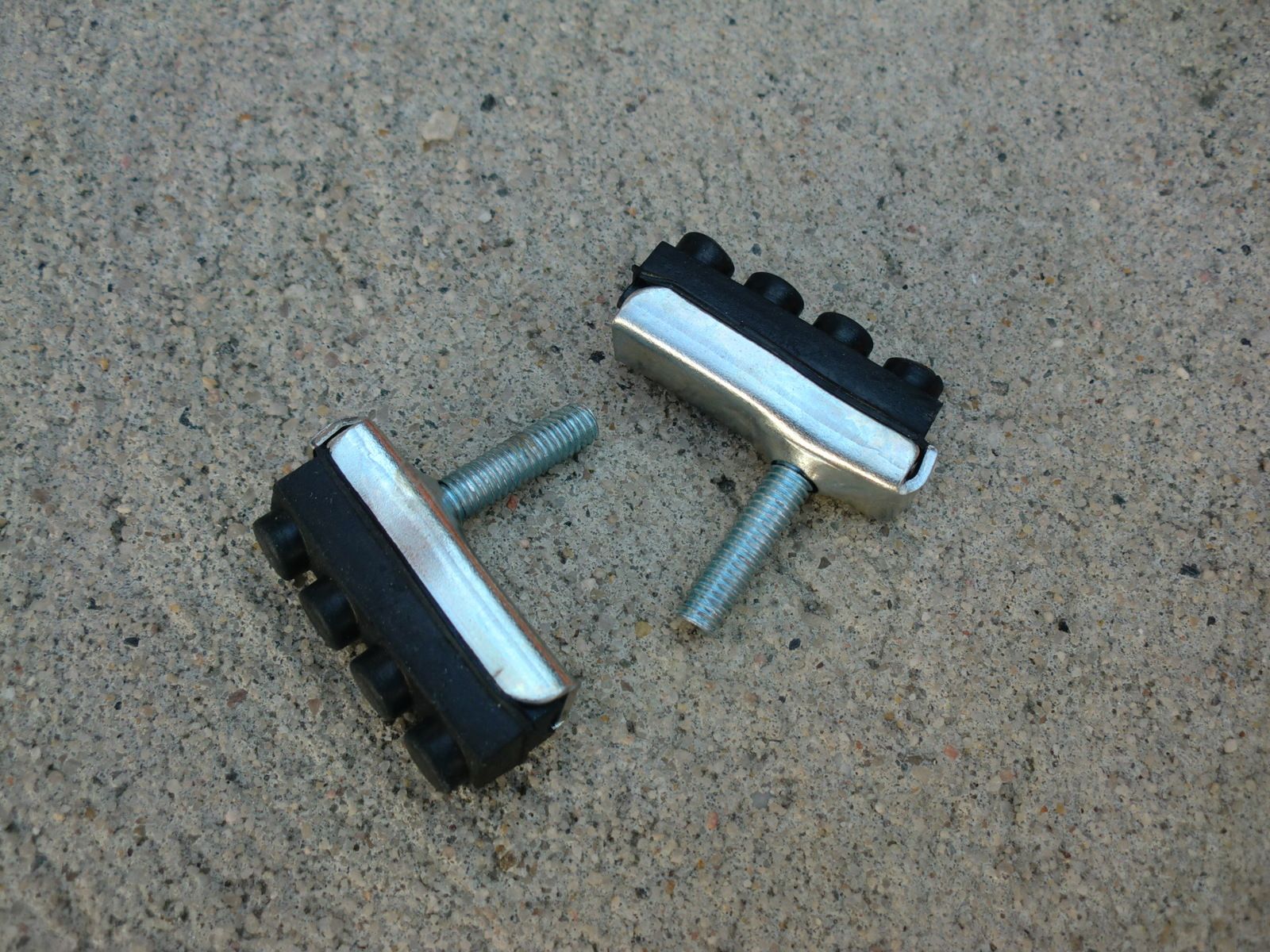

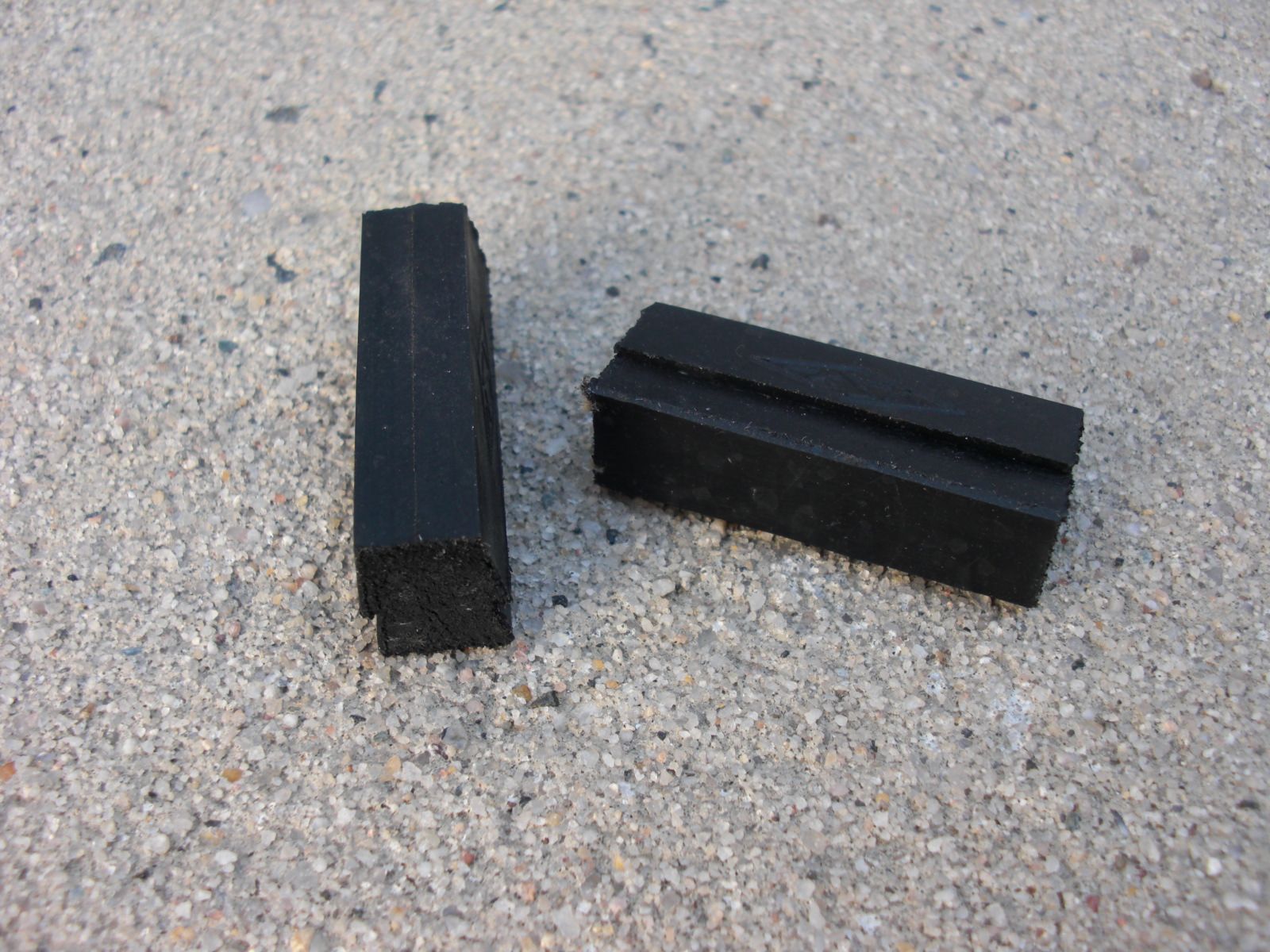

brake blocks, high quality, pair 15

~ fits 1400, 1700, 2200, 3300, 3800, 4600, 5000

~ same as original blocks

brake blocks, smooth, pair 8

~ fits 1400, 1700, 2200, 3300, 3800, 4600, 5000

~ similar to original blocks

brake blocks, X, pair 8

~ fit 1400, 1700, 2200, 3300, 3800, 4600, 5000

~ X-cut all weather

rear brake shoes, 70 mm 25

~ fits most 3300

video: How to remove and install the Velosolex Solex drum brake shoes

rear brake shoes, 83 mm 40

~ fits 4600 V1, 5000, most 1966-74 3800, some 3300

~ high quality

~ be wary of less expensive shoes,

which are not made to the correct specifications or of the correct materials,

and which squeal.

video: How to remove and install the Velosolex Solex drum brake shoes

rear brake shoes, 80 mm 15

~ fits 4600 V2 / V3, Impex / Cyklopress 3800, 1975 and later 3800

video: How to remove and install the Velosolex Solex drum brake shoes

cable clamp 5

~ for rear brake cable

---------------------------------------------------------------------------------------------------

Frame

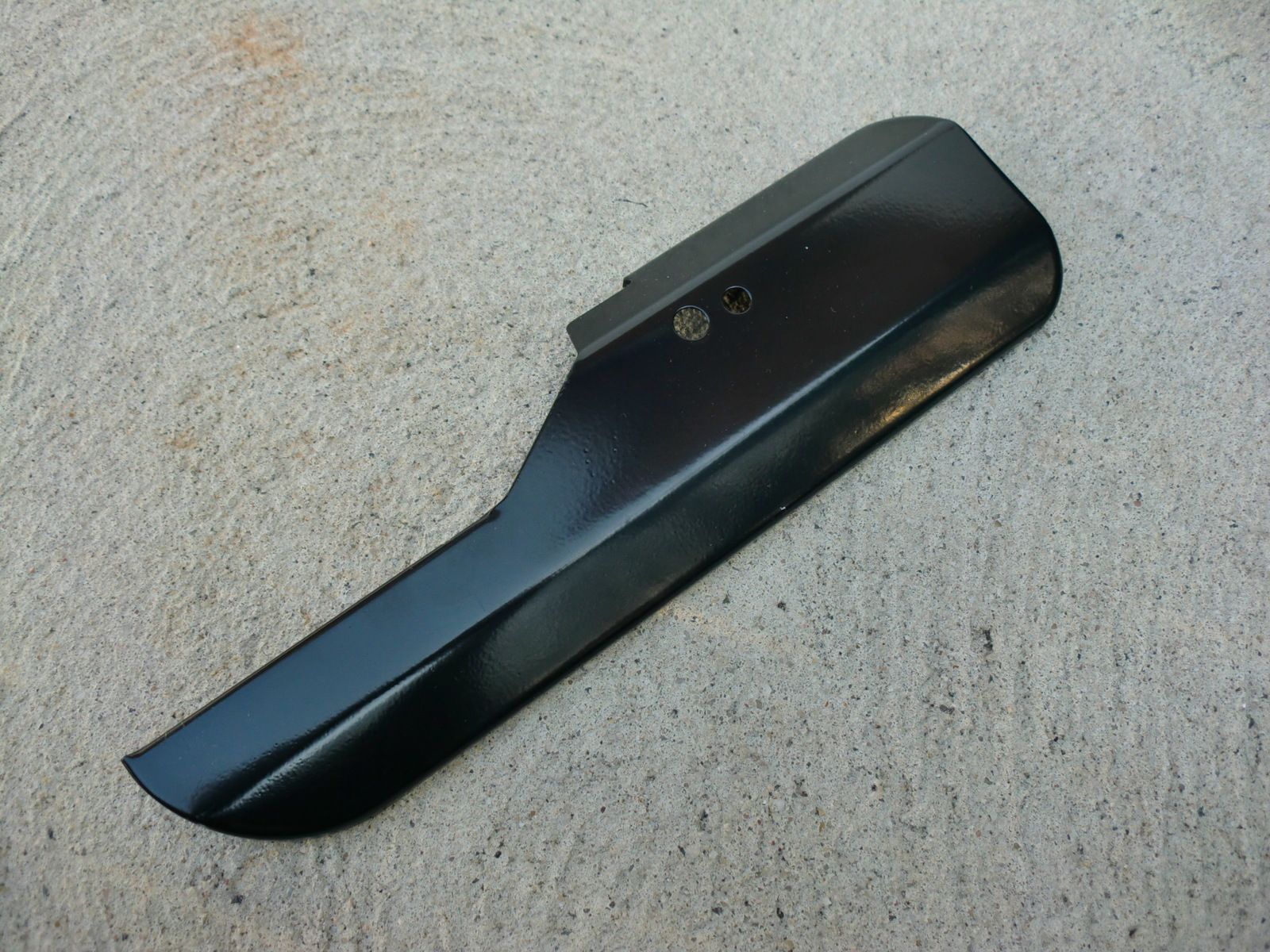

carburetor shield, black 10

~ fits 2200, 3300, 3800, 4600

video: How to install the Velosolex Solex carburetor shield

frame wire grommet 7

~ fits 3300, 3800, 4600, 5000

mud-flap, black 12

~ fits 3800, 4600

mud-flap, gray 12

~ fits 3800, 4600

mud-flap, gray 12

~fits 5000, Pli-Solex, Flash / 6000

mud-flap, black, 4-hole, SOLEX logo 20

~ for Dutch Solex OTO

~ also fits 1400, 1700, 2200, 3300, early 3800

foot rest / floor board, black 10

~ fits 3300, 3800, 4600

foot rest / floor board, gray 10

~ fits 3300, 3800, 4600

foot rest / floor board 16

~ fits 5000, Pli-Solex

foot rest / floor board 18

~ fits 1400, 1700, 2200

frame hardware set, 45

~ fits 3800, 4600

~ 45 pieces

~ all the bolts, nuts, washers, & spacers to assemble the main frame, frame rails,

center-stand, baggage rack, seat supports, rear fender & rear fender struts

seat, black 25

~ fits 3300, 3800, 4600, 5000

seat, gray 25

~ fits 3300, 3800, 4600, 5000

tool box, black 15

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600

video: How to remove and install the Velosolex Solex tool box

tool box, chrome 20

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600

video: How to remove and install the Velosolex Solex tool box

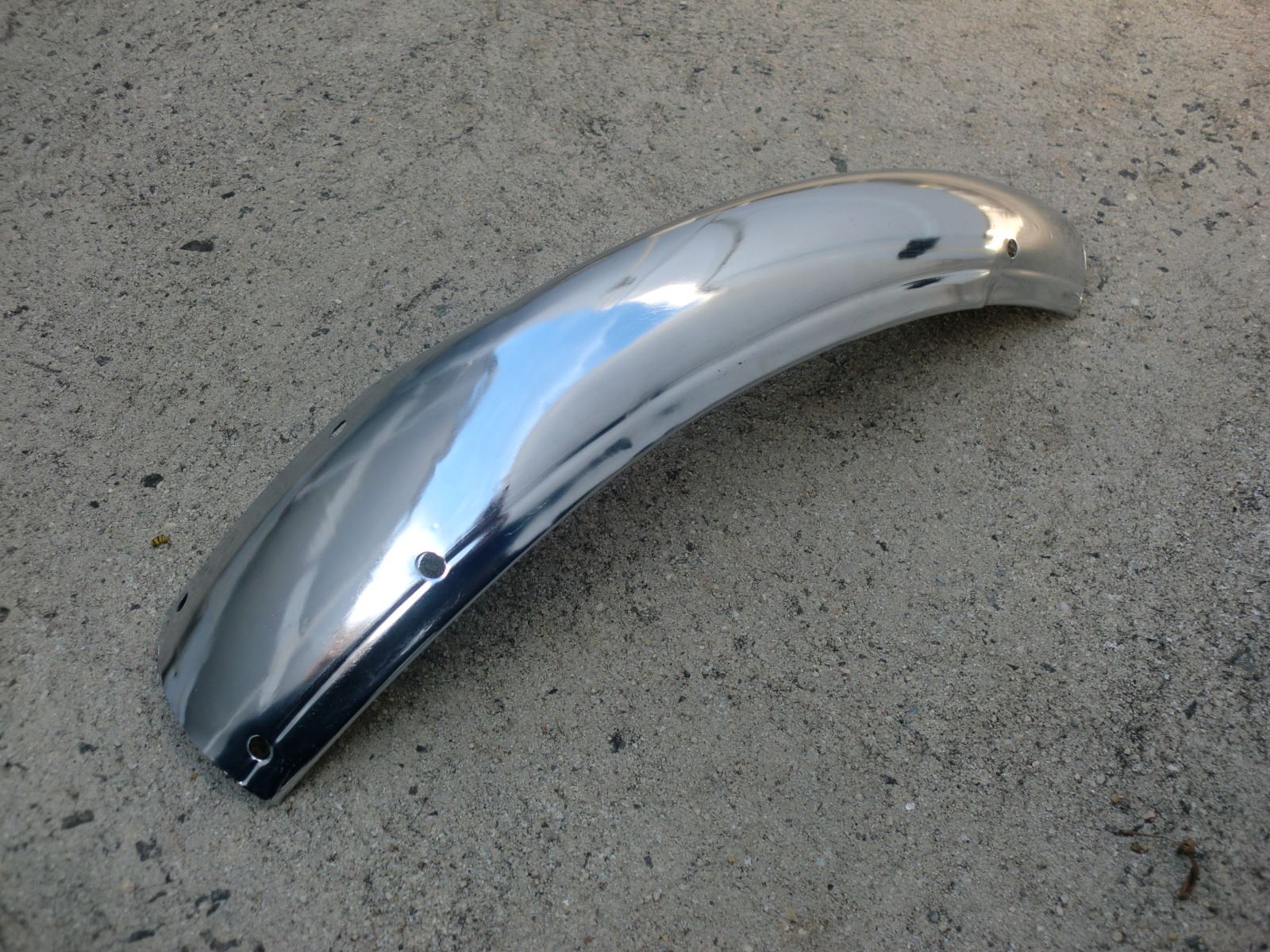

fender, mud-guard,front, chrome 56

fender, mud-guard, rear, chrome 60

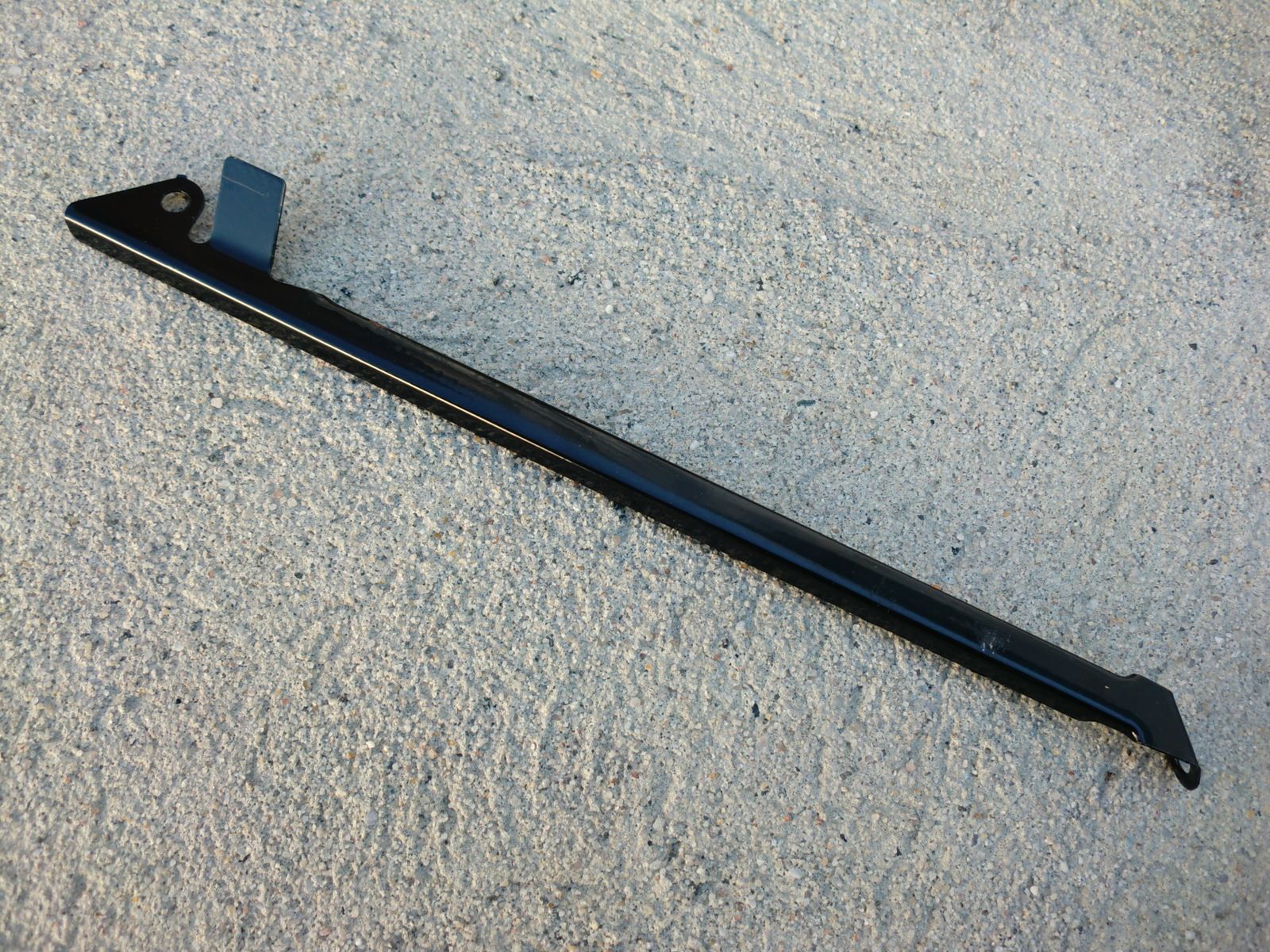

front fender strut, left side, black 7

~ fits 1400, 1700, 2200, 3300, 3800, 4600

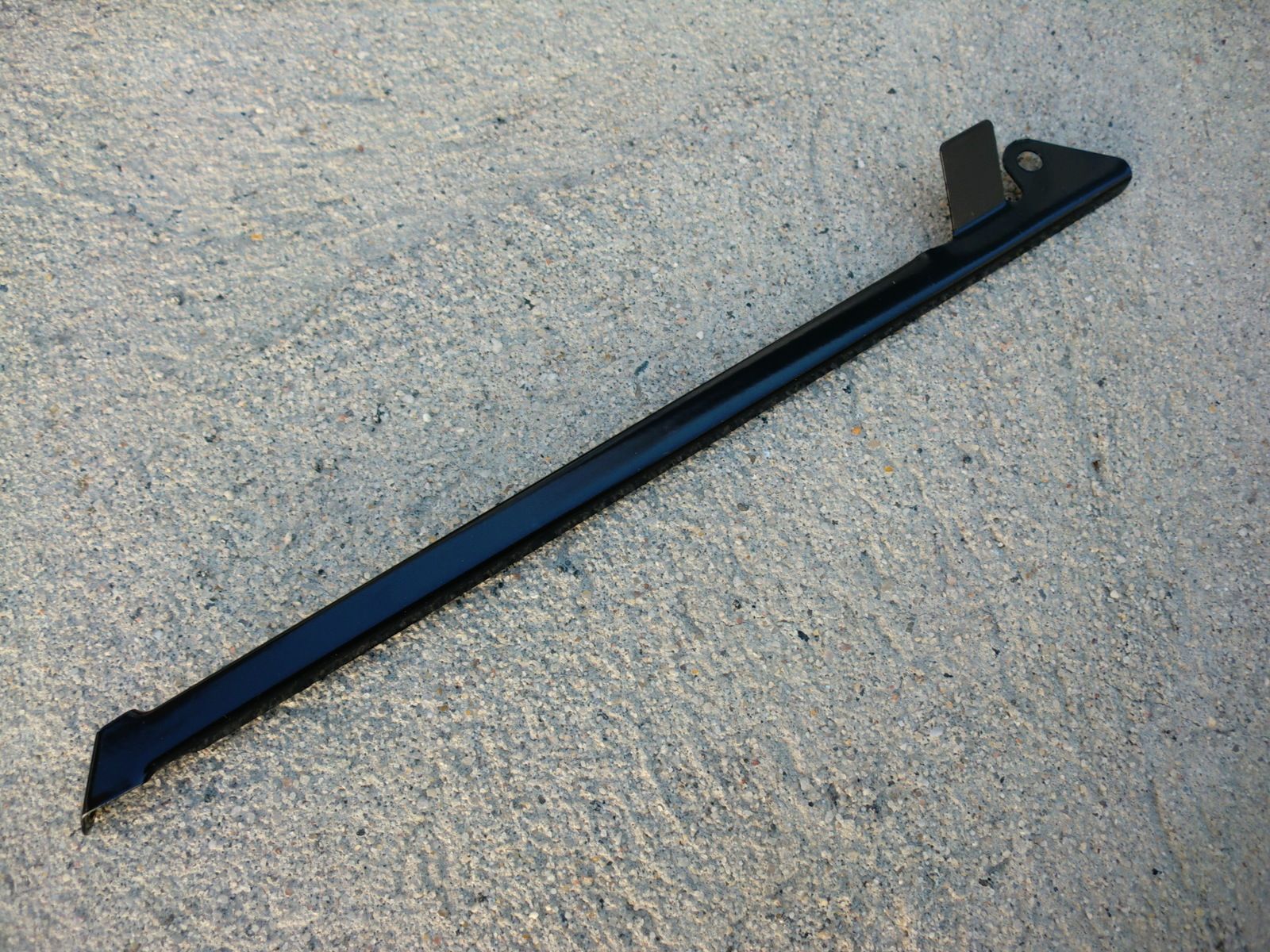

front fender strut, right side, black 7

~ fits 1400, 1700, 2200, 3300, 3800, 4600

rear fender strut, black 10

~ fits 1400, 1700, 2200, 3300, 3800, 4600

center-stand / kick stand, high quality 45

~ fits 3300, 3800, 4600

~ beware of less expensive stands which were made incorrectly

and do not fit properly

center-stand / kick stand, high quality 56

~ fits 1700 V2 / 2200

center-stand / kick stand shoulder bolts and nuts 8

~ fit 1700 V2, 2200, 3300, 3800, 4600

center-stand / kick stand spring 4

~ fits 3300, 3800, 4600

center-stand / kick stand spring 4

~fits 660, 1010, 1400, 1700 V1

center-stand kick stand spring 4

~ fits 5000, Pli-Solex, Flash / 6000

chain guard, black 8

~ fits 3300, 3800, 4600

baggage rack support strut, black 10

~ fits 3300, 3800, 4600

baggage rack end cap w/ SoleX logo 20

~ fits 5000, Pli-Solex, Flash / 6000

bolt, M8 - 1.00 2

~ for seat support, forks 2200, 3300, 4600, 5000

square nut, M8 - 1.00 2

~ for fork bolts 2200, 3300, 3800, 4600, 5000

reflector 4

~ self-adhesive

Note: I have a few secondhand frame parts for the S 3800 and 4600...let me know what you need.

---------------------------------------------------------------------------------------------------

Steering

stem bolt with cone nut 10

~ fits Impex / Cyklopress 3800

~ adaptable to 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000

video: How to remove the Velosolex Solex handlebar guidon

headset 28

~ fits Impex / Cyklopress 3800

~ adaptable to 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000

video: How to install and adjust the Velosolex Solex headset

steering tube headset bearing 2

~ fits 1400, 1700, 2200, 3300, 3800, 4600, 5000

--------------------------------------------------------------------------------------------------------

Pedals

pedals, pair, Union, white 25

~ M14 x 1.25 thread

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000

pedals, pair, Union, black 25

~ M14 x 1.25 thread

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000

pedals, pair, Union, black, taper 16

~ M14 x 1.25 thread

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000

pedals, pair, black w/ orange reflectors 12

~ M14 x 1.25 thread temporarily out-of-stock

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000

pedals, pair, black w/ orange reflectors, chrome trim 16

~ 9/16"-20 thread

~ fits Impex / Cyklopress Hungarian 3800

pedal blocks, Lyotard type, set of 4 25

pedal blocks, Eclair type, set of 4 25

pedal sprocket axle shaft 12

~ fits 3800, 4600

cotter pin, 9 mm , adaptable 3

~ for 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000

~ it might be necessary to "fit" this pin by filing or milling the flat side

and cutting the length

cotter pin, 9 mm , high quality 8

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000

cotter pin, 9 mm , NOS 10

~ fits 1010, 1400, 1700, 2200, 3300, 3800, 4600, 5000

cotter pin, 9.5 mm 3

~ fits Impex / Cyklopress 3800

-----------------------------------------------------------------------------------------------

Controls / Grips

brake levers, left and right, set 65

~ fits 4600 V1, 5000, Flash / 6000, 1969 -85 3800

~ for models with the twist-grip throttle

note: made in India - not the best quality,

but better than nothing

perch screw, long 4

~ for right side of models with twist-grip throttle (see above)

perch screw, short 4

~ fits 3300, 3800, left side of 4600 V1, 5000 & 3800 with twist-grip

throttle sleeve / slow down cam, high quality 25

~ fits 4600 V1, 5000, 1969-85 3800

~ same as the original

video: How to replace the Velosolex Solex throttle sleeve

throttle sleeve / slow down cam, economy 15

~ fits 4600 V1, 5000, 1969-85 3800

video: How to replace the Velosolex Solex throttle sleeve

throttle cable lever 15

~ fits 4600 V1, 5000, 1969-85 3800

grips, gray/green 20

~ for 4600 V1, 5000, 1971-75 3800

grips, light gray 20

~ for 1969-70 3800

grips, cream 24

~ for 2200, 3300, 1966-67 3800

hilt, left side, with grip and thumb-lever 50

~ fits Impex / Cyklopress 3800, MBK 3800

hilt, right side, with twist-grip 50

~ fits Impex / Cyklopress 3800, MBK 3800

decompressor thumb-lever 12

~ fits 2200 V2, 3300, 3800

decompressor thumb-lever assembly 50

~ fits 2200 V2, 3300, most 3800

~ all nine pieces

video: How to install and adjust the decompressor assembly

decompressor rod 5

~ fits 2200 V2, 3300, most 3800

throttle / decompressor rod 5

~ fits 1400, 1700, 2200 V1

decompressor trigger 24

~ fits 4600 V2 / V3

cable end lever barrel 5

~ for attaching brake cable to brake lever

~ fits 4600 V2 / V3

----------------------------------------------------------------------------------------------------

Electrical

horn 20

~for 4600 V2 / V3, California 3800-S,

and DOT versions of the 3300, 3800, 4600 and 5000

horn button 8

~ for California 3800-S

and DOT versions of the 3300, 3800, 4600 V1 and 5000

light switch spring 4

~ fits 2200, 3300, 3800

light switch 15

~ fits 2200, 3300, 3800

brake light switch 5

~ fits 4600 V2 / V3

-----------------------------------------------------------------------------------------------------------

Lighting

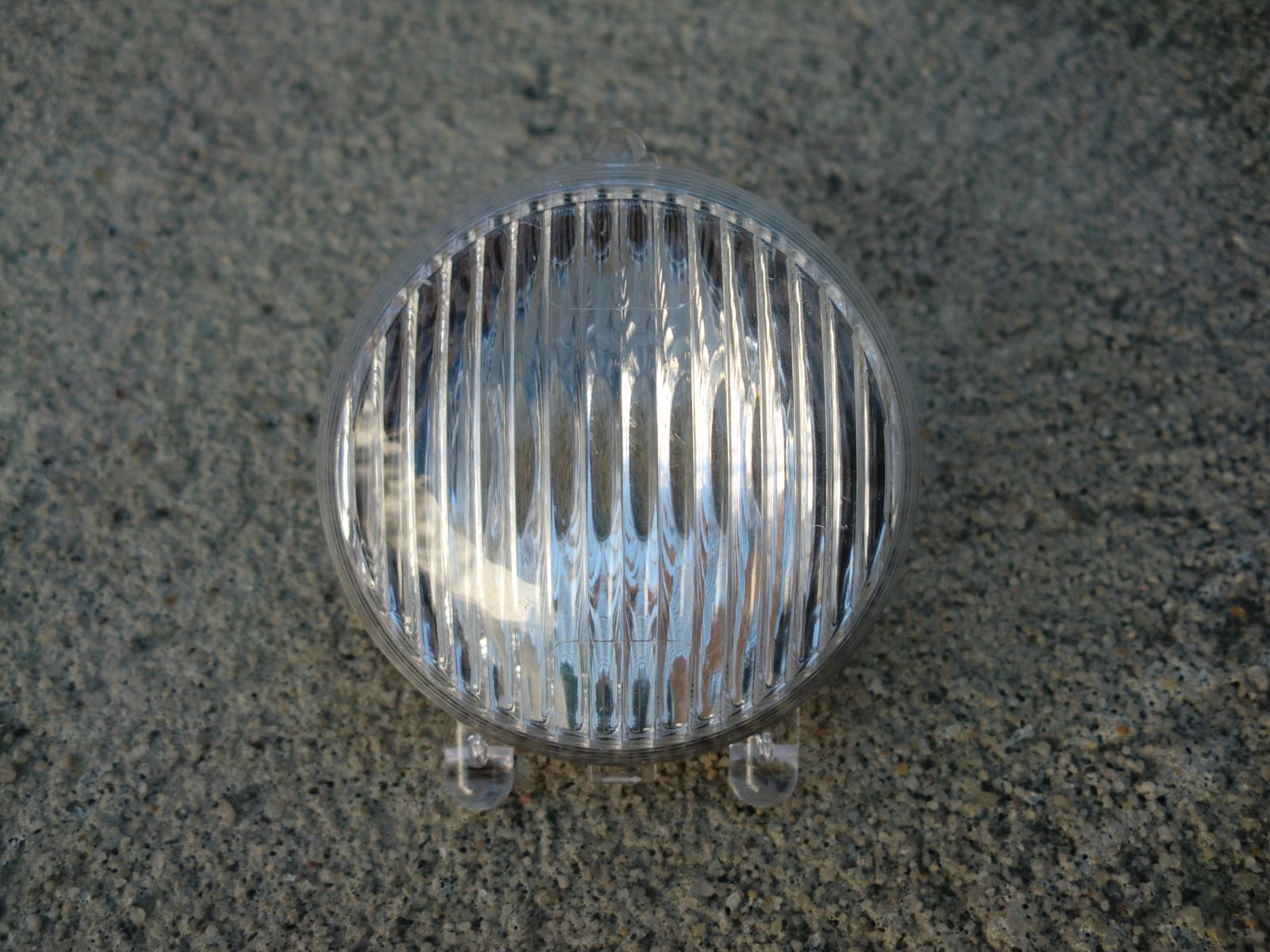

headlight 34

~ fits 1010, 1400, 1700, 2200

headlight 40

~ fits 3300, 1966-72 3800

~ adaptable to 1973-74 S 3800

ground tab 5

~ fits 3300, 1966-72 3800

headlight 85

~ fits 4600 V1, 5000, Flash, some export 3800

~ complete - includes shell, lens & mounting bracket

headlight bulb socket 4

~ for headlight using the E10 screw-in bulb

headlight bulb socket, high quality 6

~ for headlight using the E10 screw-in bulb

headlight bulb 6 V 6 W 1 A, clear 2

~ E10 base

~ for 45 cc, 330, 660, 1010, 1400, 1700, 2200, 3300,

most 3800, 4600 V1, 5000

headlight bulb 6 V 6 W 1 A, yellow 2

~ E 10 base

~ for 45 cc, 330, 660, 1010, 1400, 1700, 2200, 3300

most 3800, 4600 V1, 5000

headlight bulb 6 V 15 W 4

~ P 26 S base

~ for Impex / Cyklopress 3800, MBK 3800

headlight bulb, sealed beam, 6 V 18 W 28

~ fits 4600 V3

~ adaptable to 4600 V2

taillight bracket socket 20

~ fits 1700, 2200, 3300, most 3800, 4600 V1

taillight bracket assembly 25

~ fits 1700, 2200, 3300, most 3800, 4600 V1

~ bracket, wire cover, 3 screws, 3 nuts

taillight lens 23

~ for most 3800, 4600 V1

~ also fits 660, 1010, 1400, 1700, 2200, 3300

taillight lens 45

~ for 1700, 2200, S 3300

~ also fits 660, 1010, 1400, 3800, 4600 V1

brake light lens 25

~ threaded ; screw-in

~ for 3300 DOT, 3800 DOT, 4600 V1 DOT, 5000 DOT

taillight lens 30

~ fits most 5000, Pli-Solex

taillight, CEV type 65

~ fits 4600 V2

taillight lens, CEV type 40

~ fits 4600 V2

taillight, ULO type 35

~ adaptable to 4600 V3, some Impex / Cyklopress 3800

taillight, Soubitez 4000 30

~ fits most Impex 3800 USA

taillight bulb 14 V 7 W 2

~ E10 base

~ for 1010, 1400, 1700, 2200, 3300, most 3800, 4600 V1, 5000

taillight bulb 6 V 4 W 2

~ bayonet base

~ for Impex / Cyklopress Soubitez & ULO taillights

brake light bulb 6 V 10 W 2

~ bayonet base

~ for Impex Soubitez taillight

brake light bulb 6 V 5 W 2

~ bayonet base

~ for Impex / Cyklopress ULO taillight

taillight / brake light bulb 3

~ bayonet base

~ fits 4600 V2 / V3; California 3800-S

-----------------------------------------------------------------------------------------------------

Stickers

1966-70 model S 3800 8

1971-73 model S 3800 8

1973-74 model S 3800 28

temporarily out of stock

1973 model 4600 V1 28

temporarily out of stock

1971-74 model 5000 28

temporarily out of stock

1974 model 4600 V1 28

~ for blue, yellow, orange frames

1974 model 4600 V1 28

~ for black frame

1975 model 4600 V2 28

temporarily out of stock

1975 model 4600 V2 20

~ The Horse

1977 model 4600 V3 28

~ for blue, yellow, orange frames

1977 model 4600 V3 28

~ for black frame

1978-79 model 4600 V3 28

temporarily out of stock

4600 engine hood logo 8

5000 engine hood logo 8

National Inventors Society 20

~ S 3800 SOLEX

~ Made in Detroit

Solex...the bicycle with the motor 15

~ fits center of metal fuel tank

~ for S 3800 DOT and California 3800-S

video: How to install Velosolex Solex stickers

---------------------------------------------------------------------------------------------------

Cables

any cable (inner) 5

any sheath (housing) 7

any cable & sheath 12

cable sets

1964-66 model 3300 (2 cables, 3 black sheaths) 20

1966-67 model 3800 (2 cables, 3 black sheaths) 20

1968-74 model 3800 (3 cables, 3 gray sheaths) 30

1973-74 model 4600 V1 (4 cables, 4 gray sheaths) 40

1971-74 model 5000 (4 cables, 4 gray sheaths) 40

1975 model 4600 V2 (4 cables, 4 gray sheaths) 40

1977-79 model 4600 V3 (4 cables, 4 gray sheaths) 40

1998-2005 Impex / Cyklopress 3800 (4 cables, 4 black sheaths) 45

cable clamp 5

~ for decompressor cable, rear brake cable

----------------------------------------------------------------------------------------------------

Accessories

Solexine spare fuel can, bidon 45

spare fuel can holder, "porte bidon" 40

~ fits 1400, 1700, 2200, 3300, 3800, 4600 V1 temporarily out-of-stock

bell, crown logo 8

~ fits all Velosolex Solex

bell, SoleX logo 12

~ fits all Velosolex Solex

mirror, chrome, vintage style 20

~ fits all Velosolex Solex

foot rest / floor board , aluminum, patterned 45

~ fits 3300, 3800, 4600

foot rest / floor board, aluminum, plain 35

~ fits 3300, 3800, 4600

tire air pump, black 25

~ fits 1400, 1700, 2200, 3300, 4600 V1 & V2, 1966-74 3800

tire air pump, chrome 30

~ fits 1400, 1700, 2200, 3300, 4600 V1 & V2, 1966-74 3800

air pump hose, Schraeder (auto) valve 7

air pump hose, Presta (bicycle) valve 7

license plate tag bracket 5

~ bolts to rear fender

saddlebags sacoches panniers SoleX 50

cap hat SoleX 15

-----------------------------------------------------------------------------------------------------------------------

Brian Solex / Velosolex-America

Velosolex Solex parts

Velosolex Solex spare parts

Velosolex Solex pieces

Velosolex Solex replacement parts

Velosolex Solex spares
